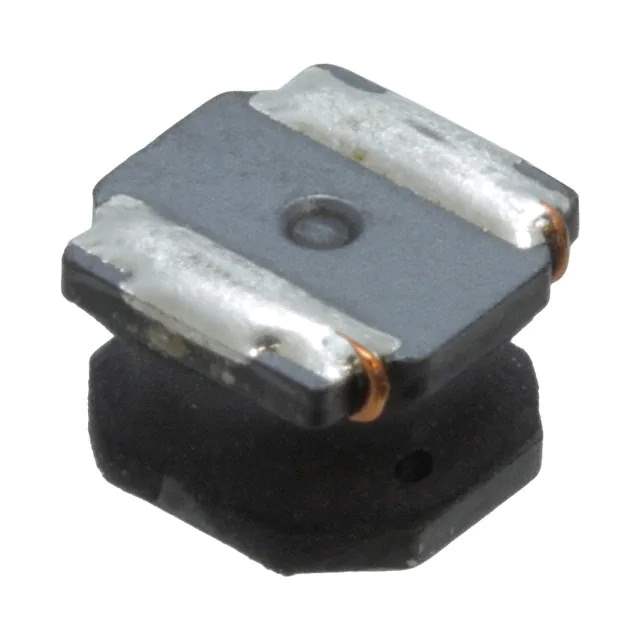

NRS6045T1R5NMGK Real Image
Same model may have multiple batches, images only for reference.

NRS6045T1R5NMGK

Part No NRS6045T1R5NMGK
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 1.5UH 4.2A 20.8MOHM SM / 1.5 μH Shielded Drum Core, Wirewound Inductor 4.2 A 20.8mOhm Max Nonstandard
Datasheet
NRS6045T1R5NMGK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series NR, S Type
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 4.2 A
Current - Saturation (Isat) 8.2A
Shielding Shielded
DC Resistance (DCR) 20.8mOhm Max
Frequency - Self Resonant 95MHz
Temperature Range - Operating -25°C ~ 120°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.177" (4.50mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 929341-NRS6045T1R5NMGK
Ultra Librarian 3D Model Ultra Librarian NRS6045T1R5NMGK CAD Model

Description

The Taiyo Yuden 929341-NRS6045T1R5NMGK is a fixed inductor with an inductance of 1.5 µH.

  • Series: NR, S Type
  • Core: Drum
  • Construction: Wirewound
  • Shielded: Yes
  • Size: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Height: 0.177" (4.50mm)
  • Mounting Type: Surface Mount
  • Package: Nonstandard
  • DC Resistance (DCR): 20.8mOhm max
  • Current Rating: 4.2A
  • Operating Temperature Range: -25°C to 120°C
  • Status: Not for new designs
