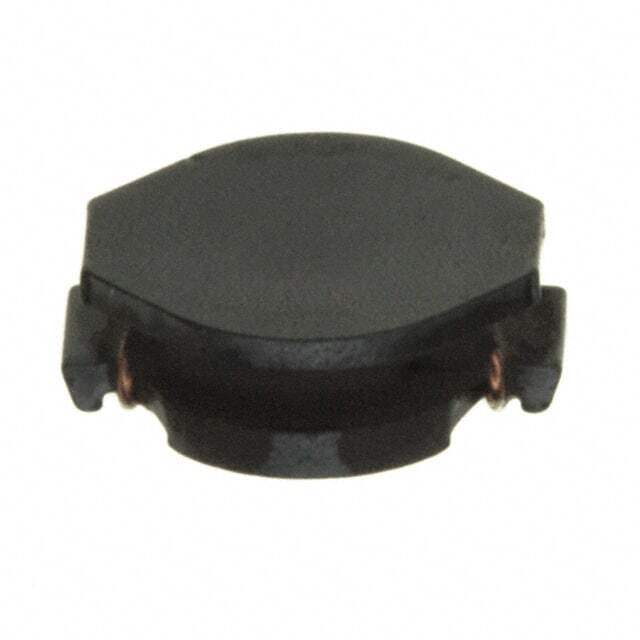

NRS6010T220MMGF Real Image
Same model may have multiple batches, images only for reference.

NRS6010T220MMGF

Part No NRS6010T220MMGF
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 22UH 700MA 580MOHM SMD
Datasheet
NRS6010T220MMGF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series NR, S Type
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 700 mA
Current - Saturation (Isat) 650mA
Shielding Shielded
DC Resistance (DCR) 580mOhm Max
Frequency - Self Resonant 12MHz
Temperature Range - Operating -25°C ~ 120°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 649438-NRS6010T220MMGF
Ultra Librarian 3D Model Ultra Librarian NRS6010T220MMGF CAD Model

Description

The NRS6010T220MMGF is a fixed inductor from the NR series by Taiyo Yuden.

  • Type: Drum core, wirewound inductor
  • Packaging: Shielded package
  • Inductance: 22 μH
  • Tolerance: ±20%
  • Size: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Height: 0.039" (1.00mm)
  • Packaging: Tape and reel packaging
  • Standard Package: 1,000 pcs
  • Temperature Range: -25°C to 120°C
  • Current Rating: 700 mA
  • DC Resistance: 580mOhm max
  • Performance: excellent performance and reliability.
