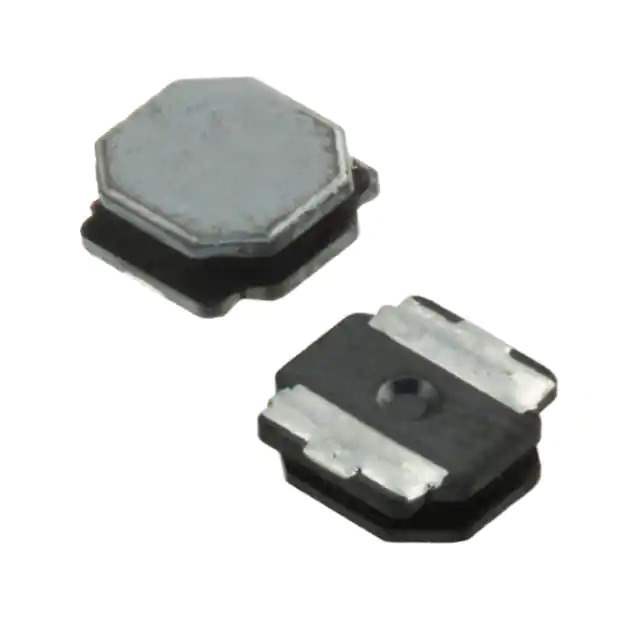

NRS5020T220MMGJ Real Image
Same model may have multiple batches, images only for reference.

NRS5020T220MMGJ

Part No NRS5020T220MMGJ
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 22UH 1A 312 MOHM SMD
Datasheet
NRS5020T220MMGJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series NR, S Type
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 900mA
Shielding Shielded
DC Resistance (DCR) 312mOhm Max
Frequency - Self Resonant 17MHz
Temperature Range - Operating -25°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 800 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 649427-NRS5020T220MMGJ
Ultra Librarian 3D Model Ultra Librarian NRS5020T220MMGJ CAD Model

Description

The 649427-NRS5020T220MMGJ is a fixed inductor from Taiyo Yuden's NR, S Type series.

  • Type: Drum core, wirewound
  • Size: 0.193" L x 0.193" W (4.90mm x 4.90mm)
  • Inductance: 22μH
  • Tolerance: ±20%
  • Shielded: Yes
  • Packaging: Tape and Reel
  • Maximum Height: 0.079" (2.00mm)
  • DC Resistance (DCR): 312mOhm max
  • Current Rating: 1A
  • Operating Temperature: -25°C to 125°C
  • Status: Not for new designs
  • Standard Package: 800 pcs
