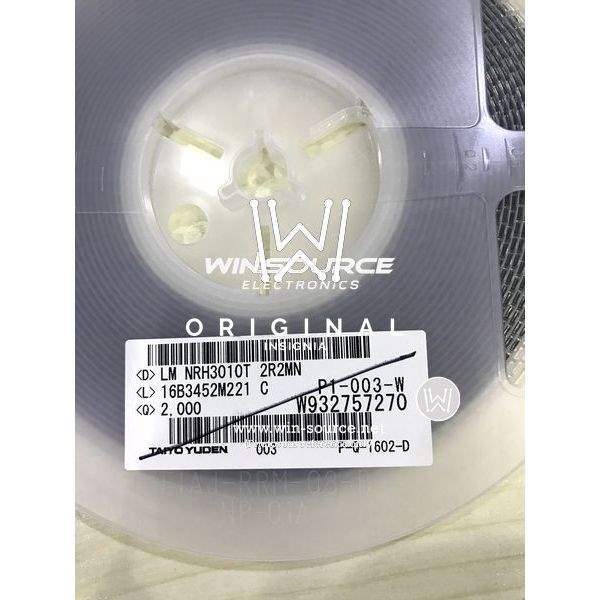

NRH3010T2R2MN Taiyo Yuden NRH3010T2R2MN label picture NRH3010T2R2MN real image
Same model may have multiple batches, images only for reference.
NRH3010T2R2MN Taiyo Yuden NRH3010T2R2MN label picture NRH3010T2R2MN real image
NRH3010T2R2MN Taiyo Yuden NRH3010T2R2MN label picture NRH3010T2R2MN real image
Same model may have multiple batches, images only for reference.

NRH3010T2R2MN

Part No NRH3010T2R2MN
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.3A 99.6 MOHM / Inductor Power Shielded Wirewound 2.2uH 20% 100KHz Ferrite 1.3A 0.0996Ohm DCR 1212 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Taiyo Yuden
Standard Package 1
Category Inductors Coils Chokes
Family Fixed Inductors
Series NRH
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 2.2µH
Tolerance ±20%
Current Rating 1.3A
Current - Saturation 1.3A
Shielding Shielded
DC Resistance 99.6 mOhm Max
Frequency - Self Resonant 86MHz
Operating Temperature Range -25°C ~ 120°C
Frequency - Test 100kHz
Mounting Style SMD/SMT
Package Nonstandard
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Catalog NR NRH and NRS Series
Win Source Part Number 045363-NRH3010T2R2MN
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name NR
Introduction Date November 27, 2011
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NRH3010T2R2MN CAD Model

Description

Taiyo Yuden's 045363-NRH3010T2R2MN is a shielded, surface mount, wirewound inductor with an inductance of 2.2μH and a current rating of 1.3A.

  • Tolerance: ±20%
  • Operating Temperature Range: -25°C ~ 120°C
  • Series: NRH
  • Popularity: high
  • Supply and Demand Status: balanced
