Same model may have multiple batches, images only for reference.

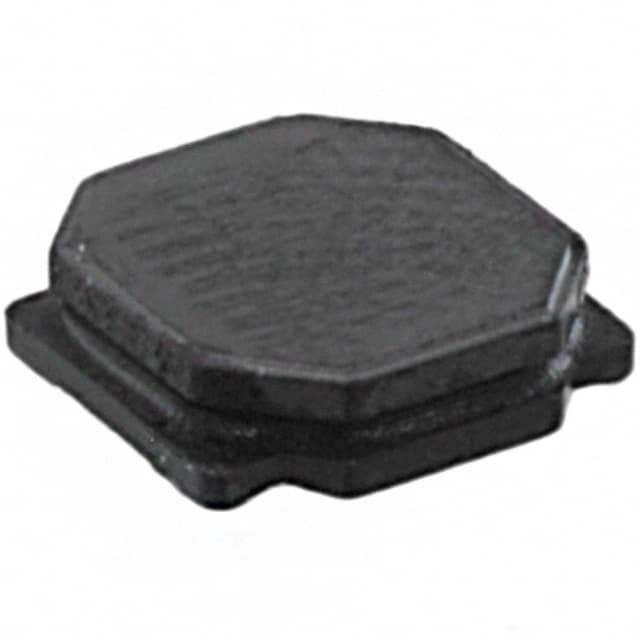

NR6020T220M Real Image
Same model may have multiple batches, images only for reference.

NR6020T220M

Part No NR6020T220M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 22UH 950MA 348MOHM SMD
Datasheet
NR6020T220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series NR
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 950 mA
Current - Saturation (Isat) 1.05A
Shielding Shielded
DC Resistance (DCR) 348mOhm Max
Frequency - Self Resonant 11MHz
Temperature Range - Operating -25°C ~ 120°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 649384-NR6020T220M
Ultra Librarian 3D Model Ultra Librarian NR6020T220M CAD Model

Description

The NR6020T220M is a drum core, wirewound inductor from Taiyo Yuden's NR series.

  • Series: NR
  • Component Type: Fixed Inductor
  • Size: 0.236" x 0.236" (6.00mm x 6.00mm)
  • Inductance: 22 μH
  • Height: 0.079" (2.00mm)
  • Shielding: Shielded
  • Mounting Type: Surface Mount
  • DC Resistance (DCR): 348mΩ
  • Current Rating: 950 mA
  • Operating Temperature: -25°C to 120°C
  • Packaging: Tape and Reel, 2,500 pcs
  • Lifecycle: Not for new designs
