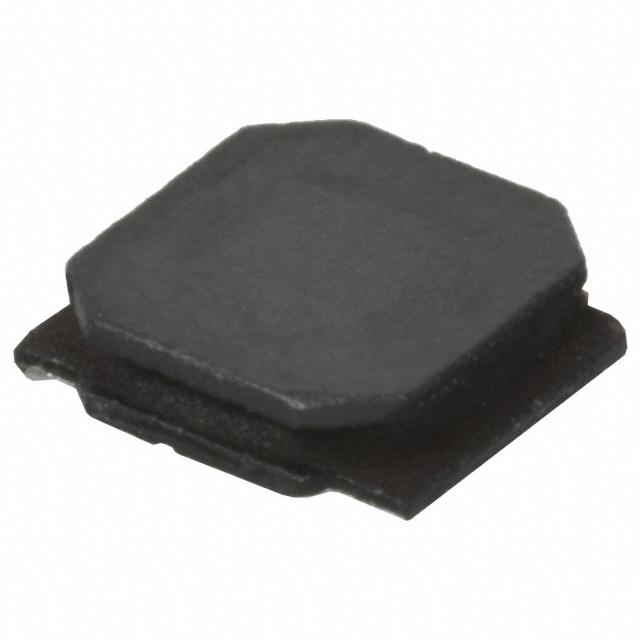

NR4012T2R2M Taiyo Yuden
Same model may have multiple batches, images only for reference.

NR4012T2R2M

Part No NR4012T2R2M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.2A 108 MOHM
Datasheet
NR4012T2R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 1.2A
Current - Saturation 1.65A
DC Resistance (DCR) 108 mOhm Max
Frequency - Self Resonant 66MHz
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 004069-NR4012T2R2M
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 4,500
Ultra Librarian 3D Model Ultra Librarian NR4012T2R2M CAD Model

Description

The Taiyo Yuden 004069-NR4012T2R2M is a wirewound inductor with a current rating of 1.2A and an inductance of 2.2μH.

  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Core Material: Ferrite
  • DC Resistance (DCR): 108 mOhm Max
  • Saturation Current: 1.65A
  • Frequency Range: 100kHz and 66MHz
  • Self-Resonant Frequency: 66MHz
  • Operating Temperature Range: -25°C and 120°C
  • Packaging: Reel
  • Quantity per Package: 4,500
