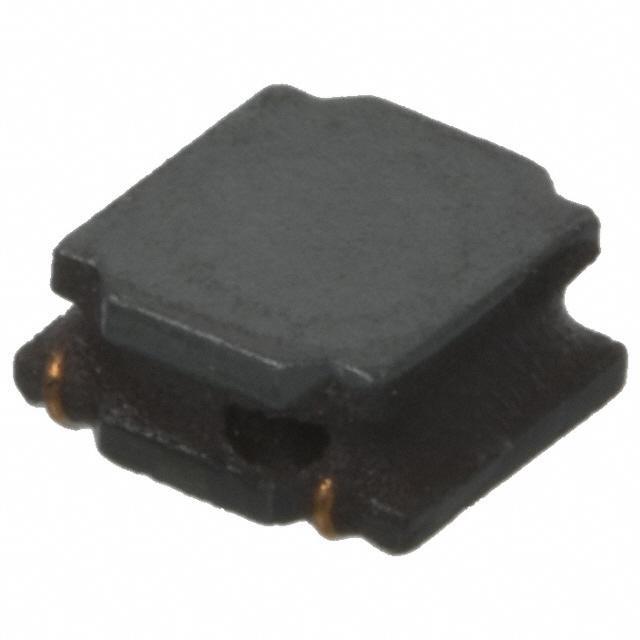

NR3015T4R7M Taiyo Yuden
Same model may have multiple batches, images only for reference.

NR3015T4R7M

Part No NR3015T4R7M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.04A 144 MOHM
Datasheet
NR3015T4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 1.04A
Current - Saturation 1.02A
DC Resistance (DCR) 144 mOhm Max
Frequency - Self Resonant 40MHz
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.059" (1.50mm)
Win Source Part Number 025666-NR3015T4R7M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian NR3015T4R7M CAD Model

Description

The Taiyo Yuden NR3015T4R7M is a wirewound inductor that is designed for electronic applications. It has a current rating of 1.04A and an inductance of 4.7μH.

  • Current Rating: 1.04A
  • Inductance: 4.7μH
  • Material: Ferrite
  • Tolerance: ±20%
  • Temperature Range: -25°C to 120°C
  • Packaging: Reel - TR
  • Quantity per Package: 2k pcs
