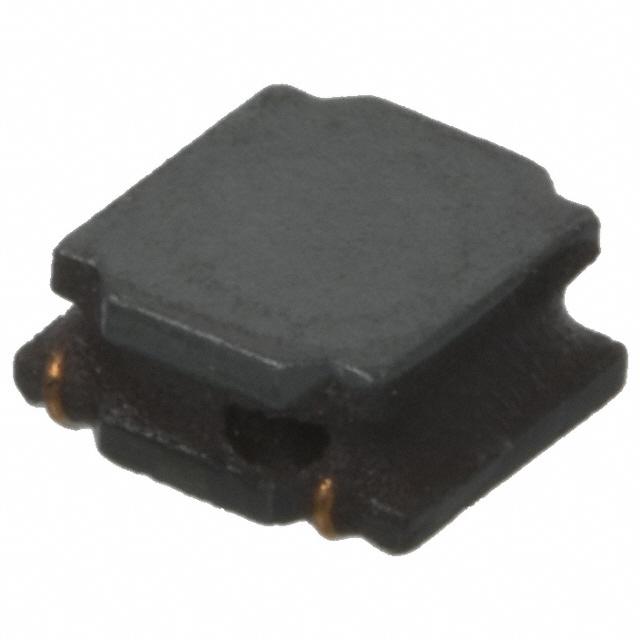

NR3015T150M Taiyo Yuden
Same model may have multiple batches, images only for reference.

NR3015T150M

Part No NR3015T150M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 15UH 560MA 432 MOHM
Datasheet
NR3015T150M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 15μH
Tolerance ±20%
Current Rating 560mA
Current - Saturation 560mA
DC Resistance (DCR) 432 mOhm Max
Frequency - Self Resonant 23MHz
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.059" (1.50mm)
Win Source Part Number 1083393-NR3015T150M
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian NR3015T150M CAD Model

Description

The Taiyo Yuden 1083393-NR3015T150M is a wirewound inductor with a ferrite core, designed to provide an inductance of 15μH and a current rating of 560mA.

  • Type: Wirewound Inductor
  • Core Material: Ferrite
  • Inductance: 15μH
  • Current Rating: 560mA
  • DC Resistance: 432mOhm Max
  • Frequency Range: 100kHz to 23MHz
  • Tolerance: ±20%
  • Operating Temperature: -25°C to 120°C
  • Mounting: SMD (SMT)
  • Height: 0.059" (1.50mm)
  • Application: Inductors, Coils, and Chokes
  • Packaging: Reel
  • Quantity: 2k pcs
