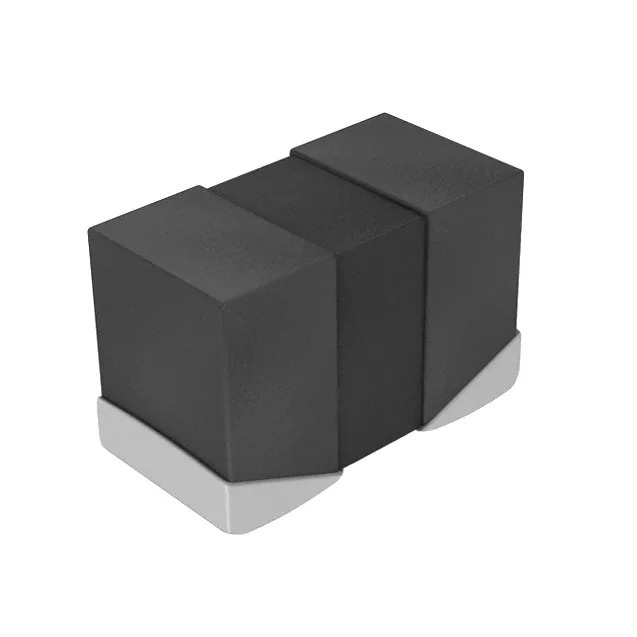

MBKK2012TR47N Taiyo Yuden
Same model may have multiple batches, images only for reference.

MBKK2012TR47N

Part No MBKK2012TR47N
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 470NH 1.65A 78MOHM SMD
Datasheet
MBKK2012TR47N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series MCOIL™, MB
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Metal
Inductance 470 nH
Tolerance ±30%
Current Rating (Amps) 1.65 A
Current - Saturation (Isat) 2A
Shielding Shielded
DC Resistance (DCR) 78mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370642-MBKK2012TR47N
Ultra Librarian 3D Model Ultra Librarian MBKK2012TR47N CAD Model

Description

The Taiyo Yuden 1370642-MBKK2012TR47N is a drum core, wirewound inductor that is part of the MCOIL™, MB series.

  • Applications: It is designed for use in various applications such as power supplies, filters, and amplifiers.
  • Package: The inductor has a compact 0805 (2012 Metric) package size, making it suitable for surface mount installation.
  • Temperature Range: It has a temperature range of -40°C to 105°C, ensuring reliable performance in a wide range of operating conditions.
  • Inductance: With an inductance of 470nH
  • Current Rating: and a current rating of 1.65A, this inductor offers excellent performance and efficiency.
  • Tolerance: It has a tolerance of ±30%
  • DC Resistance: and a DC resistance of 78mOhm max.
  • Shielding: The Taiyo Yuden 1370642-MBKK2012TR47N is a shielded inductor that provides superior electromagnetic interference (EMI) suppression.
