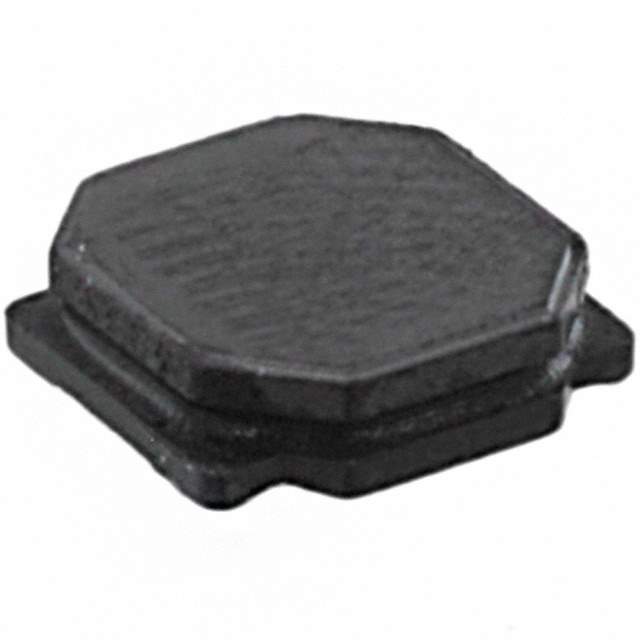

The LMNR6020T3R3N is a shielded power inductor manufactured by Taiyo Yuden. This inductor is designed for use in DC-DC converters and power supply circuits, providing efficient energy storage and filtering. Its shielded construction minimizes electromagnetic interference (EMI), making it suitable for sensitive electronic applications.

Applications

• DC-DC Converters: Used in step-up (boost) and step-down (buck) converters for voltage regulation.
• Power Supplies: Employed in various power supply circuits to filter noise and store energy.
• Portable Devices: Integrated into smartphones, tablets, and laptops for efficient power management.
• LED Lighting: Used in LED drivers to provide stable and efficient power to LEDs.
• Automotive Electronics: Employed in automotive systems for power conversion and filtering.

Features

• Shielded Construction: Minimizes electromagnetic interference (EMI) and ensures stable operation.
• Low DC Resistance (DCR): Reduces power loss and improves efficiency.
• High Saturation Current: Handles high current levels without significant inductance drop.
• Compact Size: Available in a small form factor for space-constrained designs.
• High Reliability: Designed for long-term reliability and stable performance.
• RoHS Compliant: Compliant with RoHS directives, ensuring environmental friendliness.

Benefits

• Reduced EMI: Minimizes interference with other electronic components.
• High Efficiency: Reduces power loss and improves overall system efficiency.
• Stable Performance: Ensures consistent performance under varying operating conditions.
• Space Saving: Enables compact and lightweight designs.
• Long Lifespan: Offers extended operational life, reducing maintenance and replacement costs.
• Environmentally Friendly: Complies with environmental regulations for safe and sustainable usage.

Additional Details

The LMNR6020T3R3N has an inductance value of 3.3 µH. Its dimensions are approximately 6.0mm x 6.0mm x 2.0mm. The saturation current is a key parameter and typically around 2.5A to 4A, but the datasheet should be consulted for the exact value. The DC resistance (DCR) is usually very low, often in the range of milliohms, contributing to high efficiency. The operating temperature range is typically from -40°C to +125°C. This inductor is surface mount device (SMD) and should be reflow soldered according to the manufacturer's recommended profile. Refer to the manufacturer's datasheet for detailed specifications, including inductance tolerance, Q factor, and self-resonant frequency. Proper PCB layout is crucial for optimal performance; guidelines are provided in the application notes. Ensure that the saturation current is not exceeded in the application to avoid performance degradation.
