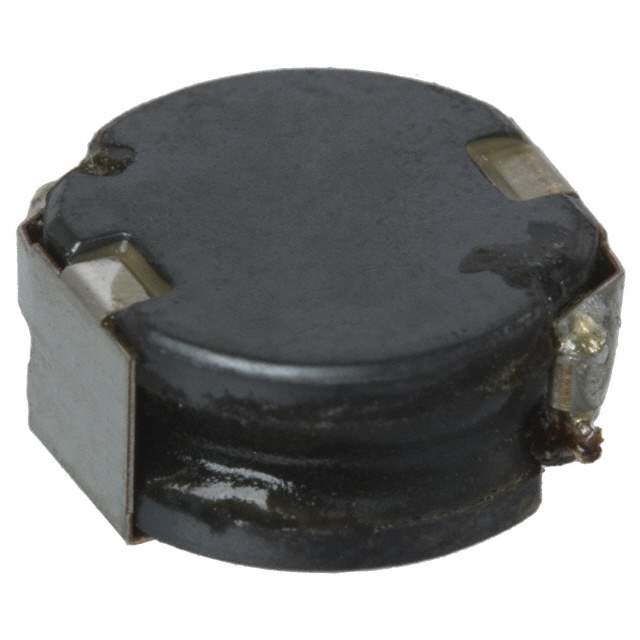

The LMNR10050T100M is a miniature molded inductor manufactured by Taiyo Yuden. It is designed for power supply circuits and features low DC resistance and high current handling capability.

Applications:

• DC-DC converters
• Power supply circuits
• Buck converters
• Boost converters
• Portable devices

Features:

• Molded inductor
• Low DC resistance
• High current handling capability
• Small size
• Surface mount design

Benefits:

• Efficient power conversion due to low DC resistance.
• Suitable for high current applications in power supplies.
• Reduces board space requirements due to its small size.
• Easy assembly with surface mount technology.
• Ideal for portable devices and compact power supplies.

Specifications:

The LMNR10050T100M has an inductance of 10µH with a tolerance of ±20%. It exhibits a low DC resistance (DCR) of 0.22 Ohms and a saturation current (Isat) of 0.7A. Its self-resonant frequency (SRF) is around 25MHz. The operating temperature range is -40°C to +125°C.
