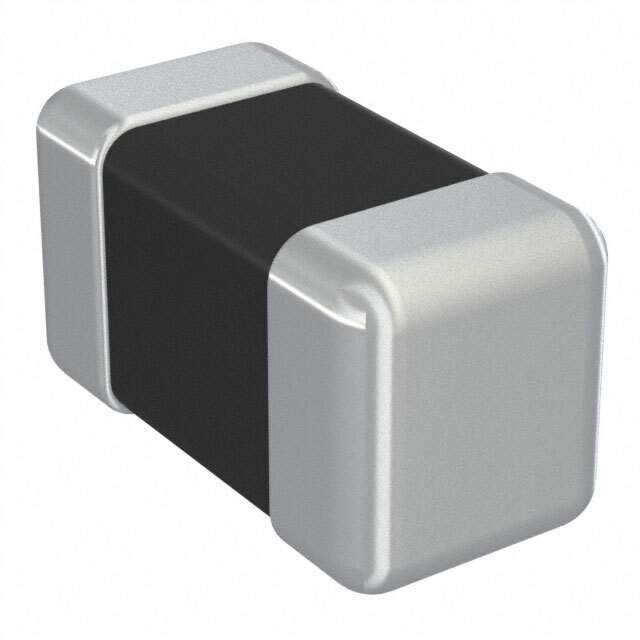

The LGHK06031N2S-T is a multilayer ceramic inductor manufactured by Taiyo Yuden. It is designed for high-frequency applications such as RF circuits, impedance matching, and filtering. The 0603 designation indicates its small physical size (0.6mm x 0.3mm), making it suitable for compact electronic devices. The 1N2 represents an inductance value of 1.2 nH (nanohenries), and the 'S' denotes standard tolerance.

Applications

• RF Circuits: Used in radio frequency circuits for impedance matching and filtering.
• Wireless Communication Devices: Found in smartphones, tablets, and other wireless devices.
• Bluetooth Modules: Implemented in Bluetooth circuits for impedance matching.
• Wi-Fi Modules: Used in Wi-Fi circuits for filtering and tuning.
• Mobile Phones: Employed in mobile phone RF front-end modules.

Features

• Multilayer Ceramic Construction: Provides high Q-factor and stable performance.
• Small Size: Ultra-compact 0603 package for space-constrained applications.
• High Self-Resonant Frequency (SRF): Enables operation at high frequencies.
• Tight Tolerance: Offers precise inductance values for accurate circuit tuning.
• Surface Mount Technology (SMT): Suitable for automated assembly processes.

Benefits

• High Performance: Provides excellent performance in high-frequency applications.
• Compact Design: The small size allows for integration into miniaturized devices.
• Stable Operation: Offers stable inductance value over temperature and frequency.
• Easy Assembly: SMT compatibility simplifies the assembly process.
• Reliable Performance: Provides dependable and consistent inductance.

Additional Details

The LGHK series is known for its high Q-factor and low DC resistance, which contribute to efficient circuit operation. The self-resonant frequency (SRF) is an important parameter that indicates the frequency at which the inductor's behavior changes from inductive to capacitive. The operating temperature range is generally between -55°C to +125°C, making it suitable for a wide range of environmental conditions. The LGHK06031N2S-T is RoHS compliant, ensuring it is environmentally friendly.
