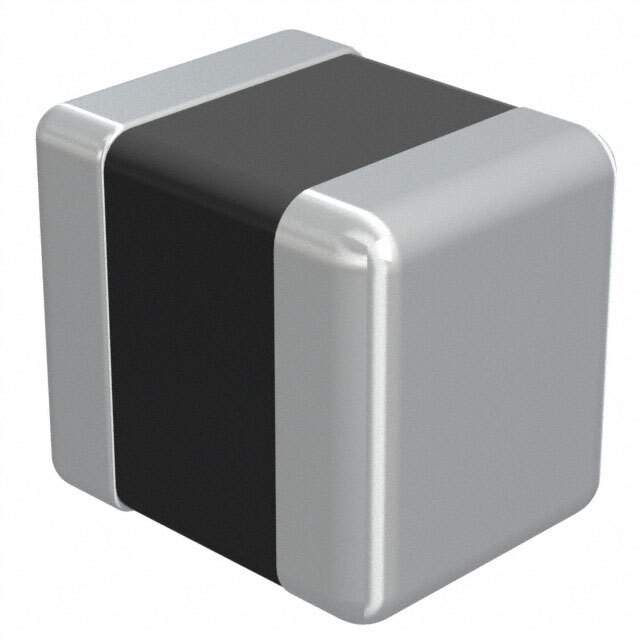

The Taiyo Yuden LBM2016T1R2J is a high-frequency multilayer chip inductor designed for use in various RF and microwave applications. It offers a compact size, high Q-factor, and excellent self-resonant frequency, making it suitable for impedance matching, filtering, and tuning circuits in wireless communication devices.

Applications:

• RF impedance matching
• RF filtering
• Tuning circuits
• Wireless communication devices (e.g., mobile phones, WLAN)
• Bluetooth modules
• GPS receivers
• High-frequency circuits

Features:

• Multilayer chip inductor
• Compact size (2016: 2.0mm x 1.6mm)
• High Q-factor
• Excellent self-resonant frequency (SRF)
• Tight inductance tolerance
• Surface-mount device (SMD)
• RoHS compliant

Benefits:

• Improved RF performance due to high Q-factor and SRF
• Reduced board space with compact size
• Simplified circuit design with SMD packaging
• Stable performance over temperature
• Environmentally friendly due to RoHS compliance

Additional Details:

The LBM2016T1R2J has an inductance value of 1.2μH (microhenries) with a specified tolerance. The high Q-factor minimizes energy loss, resulting in improved circuit efficiency. The self-resonant frequency (SRF) indicates the frequency at which the inductor's impedance becomes primarily resistive, limiting its inductive behavior at higher frequencies. The surface-mount packaging allows for automated assembly, reducing manufacturing costs. The LBM2016T1R2J is constructed using ceramic materials to achieve stable electrical characteristics. The operating temperature range is typically -55°C to +125°C. This inductor is widely used in RF front-end modules, impedance matching networks, and filtering circuits in a variety of wireless applications. Its compact size and excellent performance make it an ideal choice for modern wireless devices requiring high-frequency operation.
