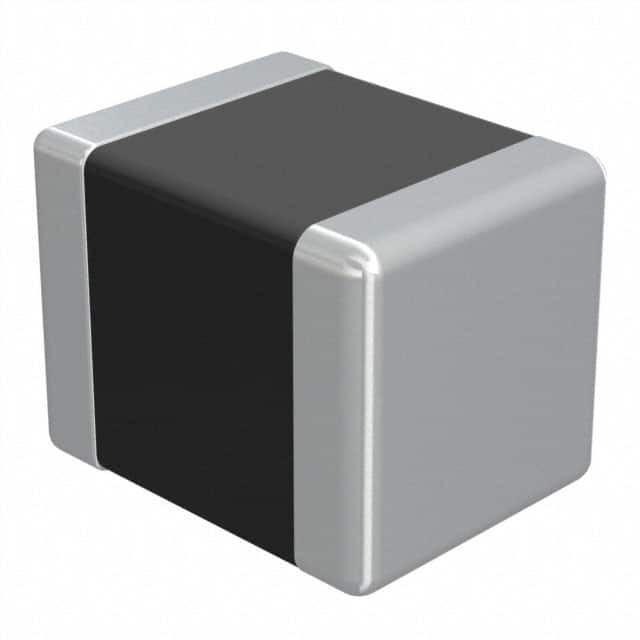

LBC3225T2R2MR Taiyo Yuden
Same model may have multiple batches, images only for reference.

LBC3225T2R2MR

Part No LBC3225T2R2MR
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Taiyo Yuden
Series LB, C Type
Package Tape & Reel
Type Wirewound
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 930 mA
Shielding Unshielded
DC Resistance (DCR) 80mOhm
Frequency - Self Resonant 190MHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210 (3225 Metric)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.106" (2.70mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1315230-LBC3225T2R2MR
Ultra Librarian 3D Model Ultra Librarian LBC3225T2R2MR CAD Model

Description

The Taiyo Yuden LB series fixed inductors are designed for use in electronic circuits that require high reliability and performance.

  • Series: LB
  • Type: Wirewound, unshielded
  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 80mOhm
  • Current Rating: 930 mA
  • Mounting Technology: SMD (SMT)
  • Package: 1210 (3225 Metric)
  • Self-Resonant Frequency: 190MHz
  • Operating Temperature Range: -40°C to 105°C
