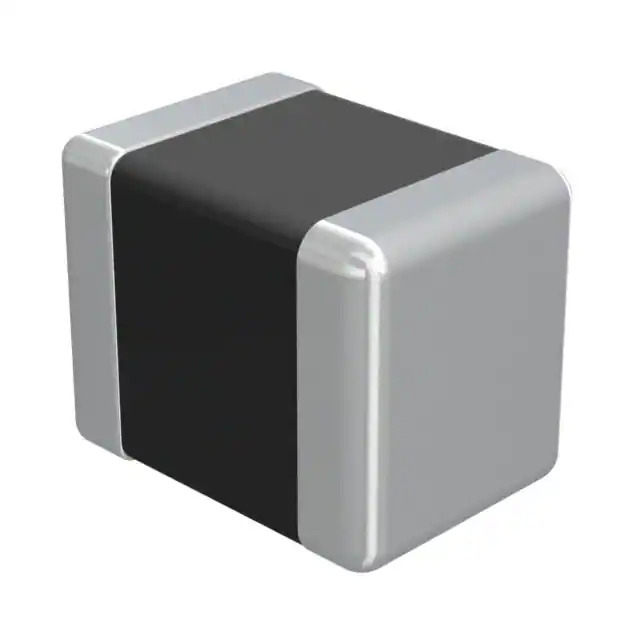

Same model may have multiple batches, images only for reference.
LB2518T1R5M Taiyo Yuden
Same model may have multiple batches, images only for reference.

LB2518T1R5M

Part No LB2518T1R5M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 1.5UH 405MA 70MOHM SMD
Datasheet
LB2518T1R5M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series LB
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 405 mA
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 70mOhm
Q @ Freq -
Frequency - Self Resonant 80MHz
Ratings -
Temperature Range - Operating -25°C ~ 105°C
Inductance Frequency - Test 7.96 MHz
Mounting Type Surface Mount
Package / Case 1007 (2518 Metric)
Supplier Device Package 1007 (2518 Metric)
Size / Dimension 0.098" L x 0.071" W (2.50mm x 1.80mm)
Height - Seated (Max) 0.079" (2.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370661-LB2518T1R5M
Ultra Librarian 3D Model Ultra Librarian LB2518T1R5M CAD Model

Description

The LB series fixed inductor from Taiyo Yuden is a drum core, wirewound inductor with a temperature range of -25°C to 105°C.

  • Series: LB
  • Temperature Range: -25°C to 105°C
  • Mounting Type: Surface Mount
  • Package / Case: 1007 (2518 Metric)
  • Inductance: 1.5µH
  • DC Resistance (DCR): 70mΩ
  • Size / Dimension: 0.098" L x 0.071" W (2.50mm x 1.80mm)
  • Height - Seated (Max): 0.079" (2.00mm)
  • Current Rating (Max): 405mA
  • Frequency - Self Resonant: 80MHz
  • Shielding: Unshielded
  • Tolerance: ±20%
