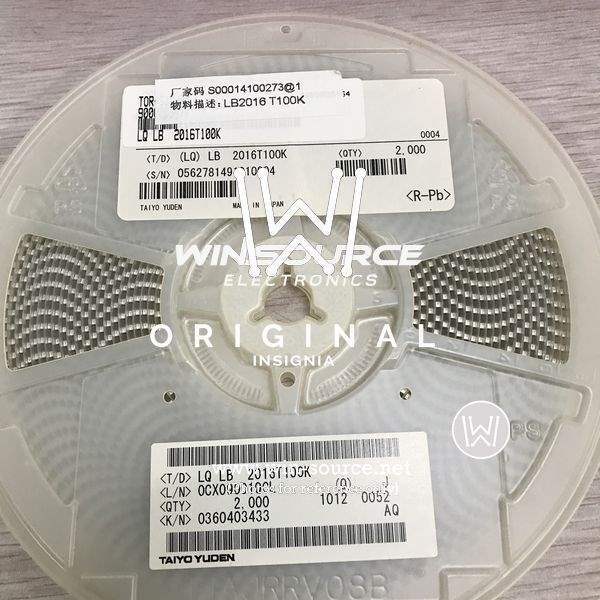

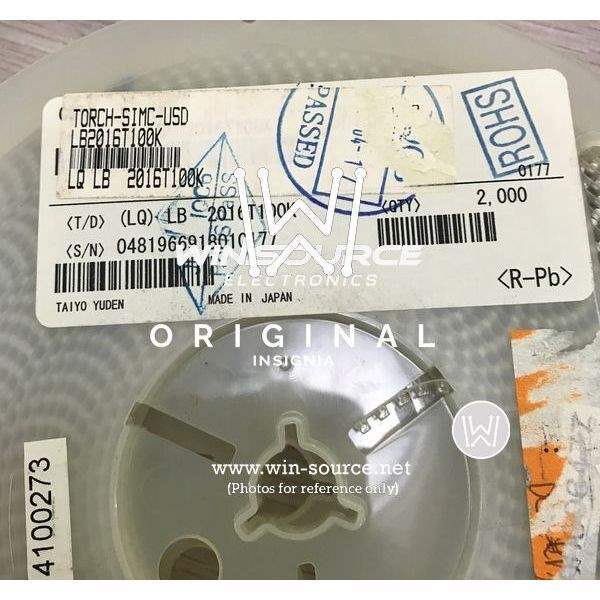

LB2016T100K Taiyo Yuden LB2016T100K label picture LB2016T100K label picture 2
Same model may have multiple batches, images only for reference.
LB2016T100K Taiyo Yuden LB2016T100K label picture LB2016T100K label picture 2
LB2016T100K Taiyo Yuden LB2016T100K label picture LB2016T100K label picture 2
Same model may have multiple batches, images only for reference.

LB2016T100K

Part No LB2016T100K
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 10UH 155MA 500 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 10μH
Tolerance ±10%
Current Rating 155mA
DC Resistance (DCR) 500 mOhm
Frequency - Self Resonant 32MHz
Temperature Range - Operating -40°C to 105°C
Frequency - Test 2.52MHz
Mounting SMD (SMT)
Case / Package 0806 (2016 Metric)
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 119114-LB2016T100K
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian LB2016T100K CAD Model

Description

The LB2016T100K is a wirewound type inductor with a 10μH inductance and a current rating of 155mA.

  • Height Seated (Max): 0.071 inches (1.80mm)
  • Mounting Type: SMD (SMT)
  • GPTDescription: The product is manufactured by Taiyo Yuden and has a Win Source Part Number of 119114.
  • Tolerance: ±10%
  • Frequency - Self Resonant: 32MHz
  • GPTDescription: The product is part of the 0806 (2016 Metric) case/package and is active.
  • Temperature Range: -40°C to 105°C
  • GPTDescription: Its supply and demand status is balanced and it comes in a package of 2k pcs.
