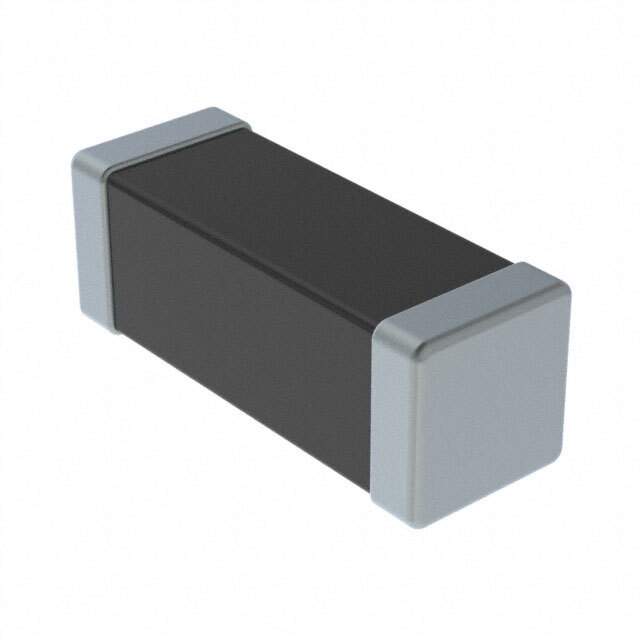

The FBMJ4516HS720NT is a ferrite bead from Taiyo Yuden, specifically designed for noise suppression in electronic circuits. This component effectively filters out high-frequency noise, preventing it from interfering with the proper operation of sensitive electronic devices. It is a surface mount device (SMD) suitable for automated assembly.

Applications:

• Suppression of power supply noise
• Filtering noise in signal lines (USB, Ethernet, etc.)
• Decoupling in digital circuits
• Noise reduction in automotive applications
• EMI suppression in consumer electronics

Features:

• Surface mount device (SMD) for automated assembly
• High impedance over a broad frequency range
• Low DC resistance to minimize signal loss
• Excellent noise suppression characteristics
• Compact package size
• RoHS compliant

Benefits:

• Effective EMI/RFI suppression: Reduces unwanted noise, improving signal integrity.
• Enhanced circuit reliability: Minimizes noise-related errors and improves the robustness of electronic circuits.
• Simplified design process: Provides an easy-to-implement solution for noise filtering.
• Space-saving design: The compact size is ideal for densely populated circuit boards.
• Cost-effective solution: Provides a high level of noise suppression at a competitive price.

Technical Specifications: The FBMJ4516HS720NT features an impedance of 72 ohms at 100 MHz. The complete impedance characteristics, DC resistance, rated current, and other specifications are available in the Taiyo Yuden datasheet. It has a 4516 package size.
