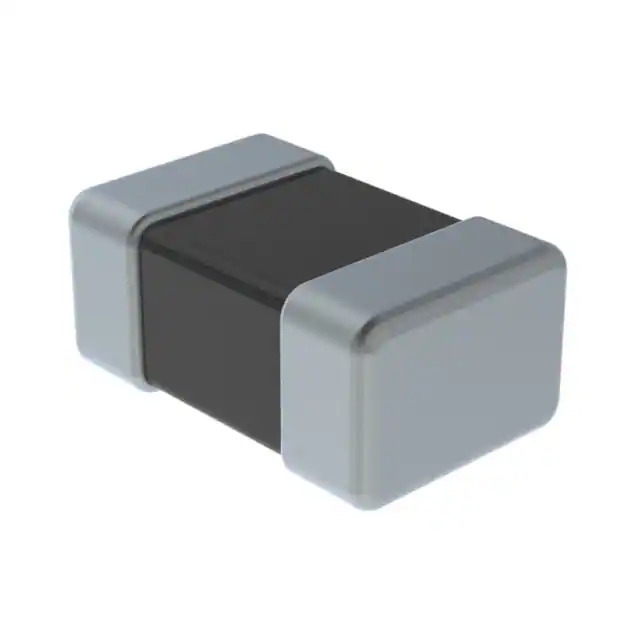

FBMH2012HM221-TV Taiyo Yuden
Same model may have multiple batches, images only for reference.

FBMH2012HM221-TV

Part No FBMH2012HM221-TV
Manufacturer Taiyo Yuden
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 220 OHM 0805 1LN
Datasheet
FBMH2012HM221-TV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Taiyo Yuden
Series FB
Package Tape & Reel
Product Status Not For New Designs
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 220 Ohms @ 100 MHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 60mOhm
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Height (Max) 0.041" (1.05mm)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369243-FBMH2012HM221-TV
Ultra Librarian 3D Model Ultra Librarian FBMH2012HM221-TV CAD Model

Description

The FBMH2012HM221-TV is a ferrite bead and chip filter from Taiyo Yuden's FB series.

  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Height: 0.041" (1.05mm)
  • Temperature Range: -40°C to 125°C
  • Filtering Application: Power Line
  • Impedance: 220 Ohms @ 100 MHz
  • Current Rating: 2A
  • DC Resistance: 60mOhm
