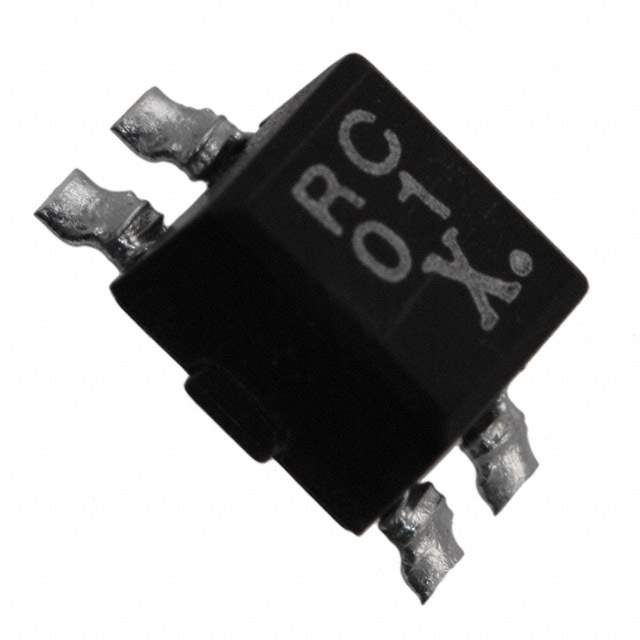

CM04RC01T Real Image
Same model may have multiple batches, images only for reference.

CM04RC01T

Part No CM04RC01T
Manufacturer Taiyo Yuden
Catalog Common Mode Chokes
Description CMC 1.5A 2LN 800 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Power, Signal Line
Number of Lines 2
Impedance @ Frequency 800 Ohm @ 100MHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 60 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C to 105°C
Mounting SMD (SMT)
Height (Max) 0.185" (4.70mm)
Dimension Horizontal, 4 Gull Wing
Win Source Part Number 013170-CM04RC01T
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian CM04RC01T CAD Model

Description

Overview

The CM04RC01T is a precision resistor network designed for use in analog signal processing and filtering applications. It provides stable and accurate resistance values crucial for maintaining signal integrity in complex circuits.

Applications

  • Analog Signal Processing
  • Audio Equipment
  • Instrumentation
  • Power Management Systems

Features and Benefits

  • Tight Tolerance: Offers precise resistance values with a tolerance as low as 0.1%.
  • Temperature Coefficient: Low TCR ensures stability across varying temperatures.
  • Compact Design: Reduces circuit board space while maintaining performance.

Additional Details

The CM04RC01T is built with high-quality materials to withstand environmental stresses and provide long-lasting performance, ensuring your designs are reliable and efficient.
