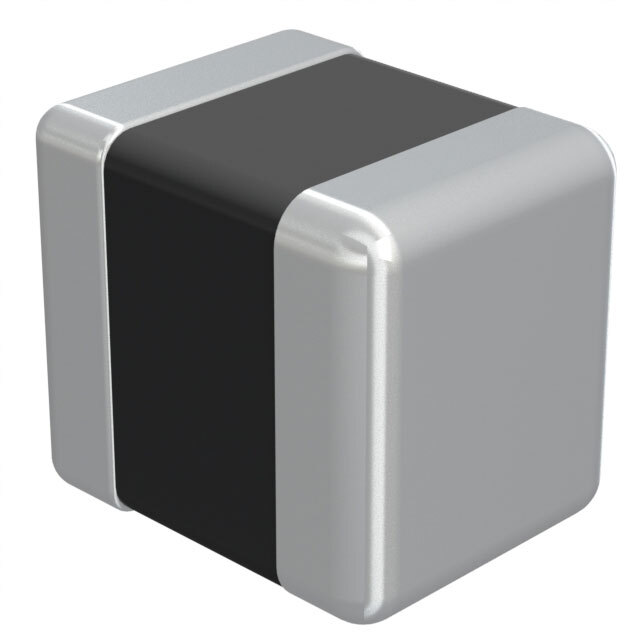

CKP2520N4R7M-T Taiyo Yuden
Same model may have multiple batches, images only for reference.

CKP2520N4R7M-T

Part No CKP2520N4R7M-T
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.1A 160MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series CK, P Type
Package Tape & Reel
Product Status Obsolete
Type Multilayer
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 160mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370201-CKP2520N4R7M-T
Ultra Librarian 3D Model Ultra Librarian CKP2520N4R7M-T CAD Model

Description

The Taiyo Yuden CK Series CKP2520N4R7M-T is a multilayer fixed inductor designed for use in electronic circuits. Taiyo Yuden

  • Temperature Range: -40°C to 85°C
  • Tolerance: ±20%
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.039" (1.00mm)
  • Inductance: 4.7μH
  • Current Rating: 1.1A
  • Shielding: Unshielded
  • DC Resistance: 160mOhm Max.
