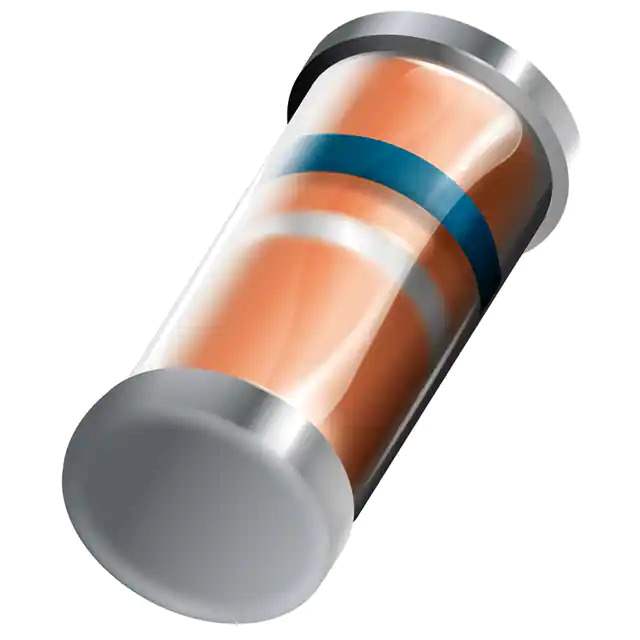

ZM4747A

Name: ZM4747A
Brand: Taiwan Semiconductor
SKU: 700342
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ZM4747A
Manufacturer	Taiwan Semiconductor
Catalog	Diodes - Zener - Single
Description	MELF, 1000MW, 5%, SMALL SIGNAL Z
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr	Taiwan Semiconductor
Package	Tape & Reel
Product Status	Active
Voltage - Zener (Nom) (Vz)	20 V
Tolerance	±5%
Power - Max	1 W
Impedance (Max) (Zzt)	22 Ohms
Current - Reverse Leakage @ Vr	5 µA @ 15.2 V
Temperature Range - Operating	-65°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-213AB, MELF
Supplier Device Package	MELF
Base Product Number	ZM4747
Standard Package	5,000 pcs
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0050
Win Source Part Number	700342-ZM4747A
Ultra Librarian 3D Model	Ultra Librarian ZM4747A CAD Model

Alternative Products

Description

The 700342-ZM4747A is a single zener diode from Taiwan Semiconductor.

Series: ZM4747
Package: DO-213AB surface mount
Voltage Rating: 20V
Voltage Tolerance: ±5%
Maximum Power Rating: 1W
Impedance: 22 Ohms
Current Reverse Leakage: 5 μA @ 15.2V
Operating Temperature Range: -65°C to 175°C
Applications: Voltage regulation, surge protection, and signal clamping
Standard Package: 5,000 pcs
Status: Active
