Same model may have multiple batches, images only for reference.

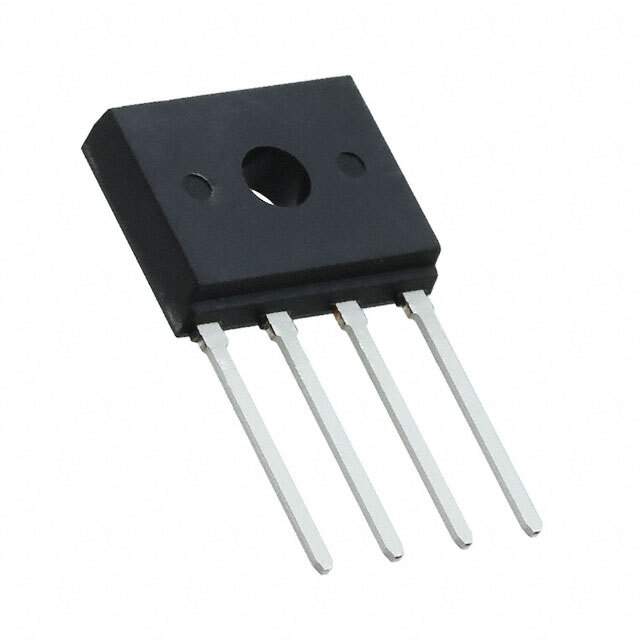

UR4KB80 C2G Real Image
Same model may have multiple batches, images only for reference.

UR4KB80 C2G

Part No UR4KB80 C2G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECTIFIER, STANDARD, 4A, / Diode Rectifier Bridge Single 800V 4A 4-Pin Case D3K Box
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer TSC America Inc.
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Maximum) @ If 1V @ 2A
Current - Reverse Leakage @ Vr 10μA @ 800V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-ESIP
Manufacturer Package D3K
Win Source Part Number 798911-UR4KB80 C2G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1,500
Family Name UR4KB80
Introduction Date July 14, 2013
ECCN EAR99
Country of Origin China, Taiwan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian UR4KB80 C2G CAD Model

Description

The UR4KB80 C2G is a single-phase diode designed for use in various electronic devices.

  • Manufacturer: TSC America Inc.
  • Win Source Part Number: 798911
  • Mounting: Through-hole
  • Voltage: 800V
  • Current Rating: 4A
  • Package: D3K
  • Peak Reverse Voltage: 800V
  • Popularity: Medium
  • Supply and Demand Status: Limited
