Same model may have multiple batches, images only for reference.

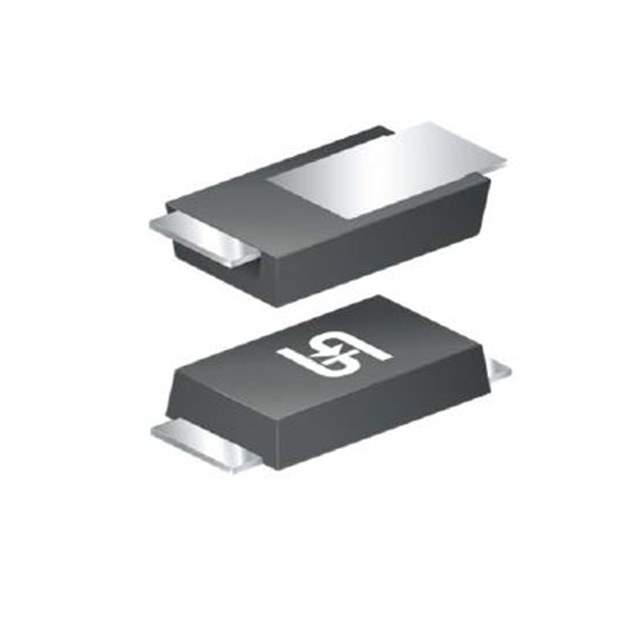

TSSE3H60 Real Image
Same model may have multiple batches, images only for reference.

TSSE3H60

Part No TSSE3H60
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 3A SOD123HE / Diode 60 V 3A Surface Mount SOD-123HE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor Corporation
Package Tape & Reel
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 600 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 60 V
Mounting Type Surface Mount
Package / Case SOD-123H
Supplier Device Package SOD-123HE
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number TSSE3
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1348705-TSSE3H60
Ultra Librarian 3D Model Ultra Librarian TSSE3H60 CAD Model

Description

The TSSE3H60 from Taiwan Semiconductor Corporation is a fast recovery Schottky diode with a current rating of 3A.

  • Package: Tape and Reel
  • Standard Package: 10,000
  • Device Package: SOD-123HE
  • Supplier Device Package: SOD-123HE
  • Voltage DC Reverse (Vr) (Max): 60V
  • Voltage Forward (Vf) (Max) @ If: 600mV @ 3A
  • Operating Temperature: -55 degrees Celsius to 150 degrees Celsius
  • Mounting Type: Surface Mount
  • Package/Case: SOD-123H
  • MSL: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8541.10.0080
