Same model may have multiple batches, images only for reference.

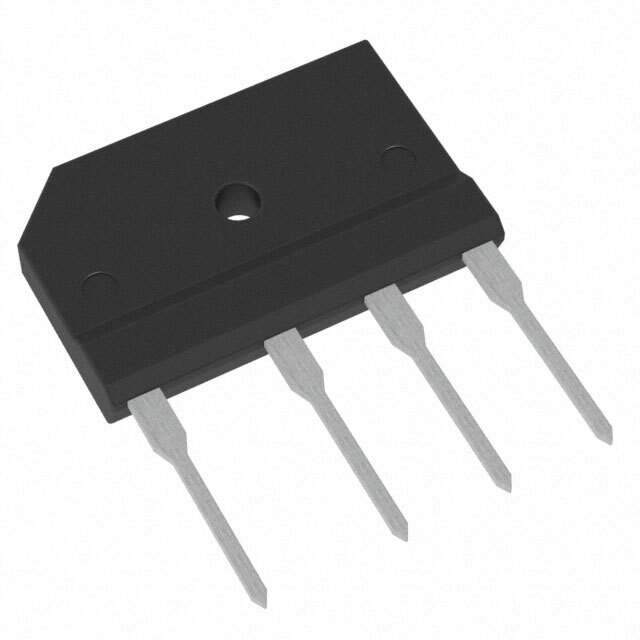

TS25P05G Real Image
Same model may have multiple batches, images only for reference.

TS25P05G

Part No TS25P05G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 600V 25A TS-6P
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 25 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 15 A
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, TS-6P
Supplier Device Package TS-6P
Base Product Number TS25P05
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 691515-TS25P05G
Ultra Librarian 3D Model Ultra Librarian TS25P05G CAD Model

Description

The 691515-TS25P05G is a single-phase bridge rectifier suitable for various applications.

  • Current Rating: 25A
  • Forward Voltage: 1.1V @ 15A
  • Peak Reverse Voltage: 600V
  • Reverse Leakage Current: 10µA @ 600V
  • Mounting Type: Through-hole
  • Package: Tube package containing 15 pieces
  • Operating Temperature Range: -55°C to 150°C
  • Manufacturer: Taiwan Semiconductor
  • Status: Active
  • ECCN: EAR99
  • REACH: Not affected
