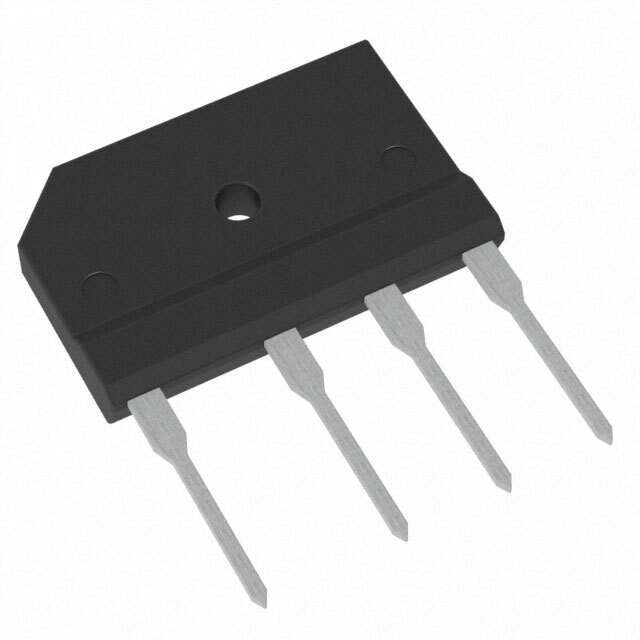

TS20P06G Real Image
Same model may have multiple batches, images only for reference.

TS20P06G

Part No TS20P06G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 800V 20A TS-6P / Bridge Rectifier Single Phase Standard 800 V Through Hole TS-6P
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 20 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 20 A
Current - Reverse Leakage @ Vr 10 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, TS-6P
Supplier Device Package TS-6P
Base Product Number TS20P06
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 691504-TS20P06G
Ultra Librarian 3D Model Ultra Librarian TS20P06G CAD Model

Description

The TS20P06G is a single-phase bridge rectifier diode used in discrete semiconductor applications, manufactured by Taiwan Semiconductor.

  • Category: Diodes - Rectifier
  • Average Rectified Current: 20A
  • Forward Voltage Drop: 1.1V @ 20A
  • Peak Reverse Voltage: 800V
  • Package: 4-SIP, TS-6P
  • Mounting Type: Through-Hole
  • Product Status: Active
