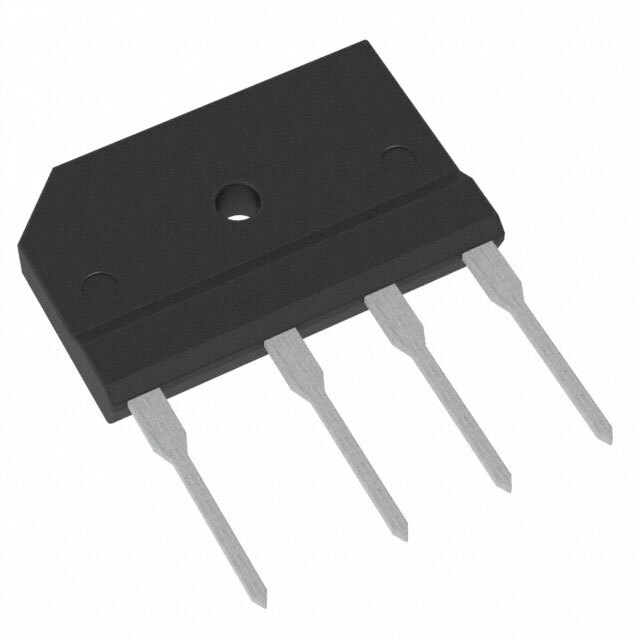

Same model may have multiple batches, images only for reference.
TS10P05G C2G Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

TS10P05G C2G

Part No TS10P05G C2G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor Corporation
Package Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 10 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 10 A
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, TS-6P
Supplier Device Package TS-6P
Base Product Number TS10P05
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1315679-TS10P05G C2G
Ultra Librarian 3D Model Ultra Librarian TS10P05G C2G CAD Model

Description

The Taiwan Semiconductor TS10P05G C2G is a single phase diode bridge rectifier.

  • Current Average Rectified: 10 A
  • Voltage Forward: 1.1 V @ 10 A
  • Mounting Type: Through Hole
  • Temperature Range: -55°C to 150°C
  • Manufacturer: Taiwan Semiconductor Corporation
