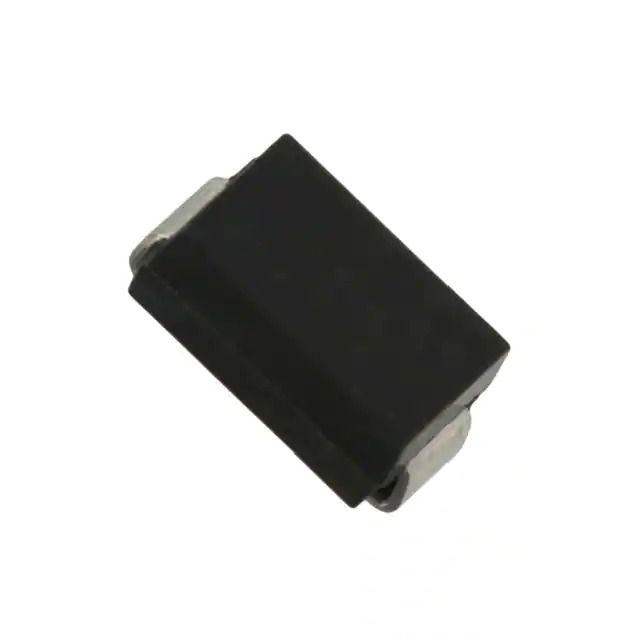

SMBJ130A M4G

Name: SMBJ130A M4G
Brand: Taiwan Semiconductor
SKU: 1362210
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMBJ130A M4G
Manufacturer	Taiwan Semiconductor
Catalog	TVS - Diodes
Description	TVS DIODE 130VWM 209VC DO214AA / 209V Clamp 3A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Taiwan Semiconductor Corporation
Series	SMBJ
Package	Tape & Reel
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	130V
Voltage - Breakdown (Min)	144V
Voltage - Clamping (Max) @ Ipp	209V
Current - Peak Pulse (10/1000µs)	3A
Power - Peak Pulse	600W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMB)
Base Product Number	SMBJ130
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362210-SMBJ130A M4G
Ultra Librarian 3D Model	Ultra Librarian SMBJ130A M4G CAD Model

Description

The SMBJ130A M4G is a TVS diode designed for transient voltage suppression in surface mount applications.

Reverse Standoff Voltage: 130V
Breakdown Voltage: 144V
Clamping Voltage @ Peak Pulse Current: 209V
Peak Pulse Current: 3A
Power Rating: 600W
Series: SMBJ
Package: DO-214AA (SMB)
Mounting Type: Surface Mount
Temperature Range: -55°C to 150°C
Application: General Purpose
