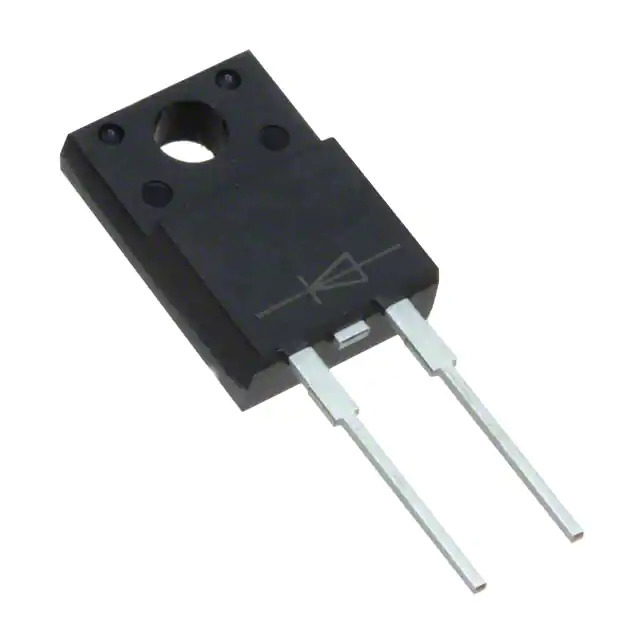

Same model may have multiple batches, images only for reference.
SFAF805G C0G Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

SFAF805G C0G

Part No SFAF805G C0G
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 300V 8A ITO220AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor Corporation
Series -
Package Tube
Technology Standard
Voltage - DC Reverse (Vr) (Max) 300 V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 10 µA @ 300 V
Capacitance @ Vr, F 60pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case TO-220-2 Full Pack
Supplier Device Package ITO-220AC
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SFAF805
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366887-SFAF805G C0G
Ultra Librarian 3D Model Ultra Librarian SFAF805G C0G CAD Model

Description

The SFAF805G C0G is a standard diode from Taiwan Semiconductor Corporation.

  • Manufacturer: Taiwan Semiconductor Corporation
  • Application: Rectifier
  • Suitable for: High-Frequency Switching Power Supplies
  • Maximum Reverse Voltage: 300V
  • Average Rectified Current: 8A
  • Forward Voltage: 1.3V @ 8A
  • Recovery Time: Less than 500ns
  • Package: TO-220-2 Full Pack
  • Mounting Type: Through-Hole
  • Temperature Range: -55°C to 150°C
  • Status: Active
  • Packaging: Tube
