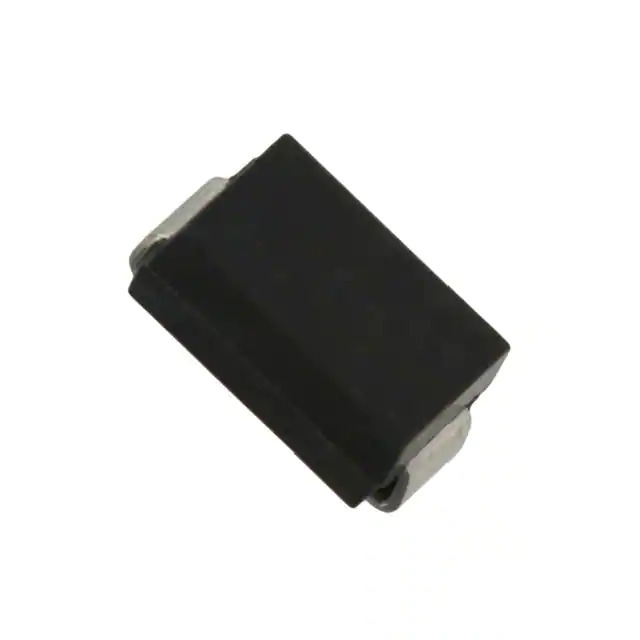

S5MB

Name: S5MB
Brand: Taiwan Semiconductor
SKU: 1368139
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	S5MB
Manufacturer	Taiwan Semiconductor
Catalog	Diodes, Rectifiers - Single
Description	DIODE GEN PURP 5A DO214AA
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr	Taiwan Semiconductor Corporation
Series	-
Package	Tape & Reel
Product Status	Active
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	1000 V
Current - Average Rectified (Io)	5A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 5 A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	10 µA @ 1000 V
Capacitance @ Vr, F	40pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMB)
Operating Temperature - Junction	-55°C ~ 150°C
Base Product Number	S5M
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1368139-S5MB
Ultra Librarian 3D Model	Ultra Librarian S5MB CAD Model

Alternative Products

Description

The 1368139-S5MB is a single diode rectifier from Taiwan Semiconductor Corporation.

Series: S5M
Mounting Type: Surface Mount
Package/Case: DO-214AA (SMB)
Packaging: Tape and Reel
Maximum Reverse Voltage (Vr): 1000 V
Average Rectified Current (Io): 5A
Forward Voltage (Vf): 1.1 V @ 5 A
Speed: Standard Recovery
Reverse Leakage Current: 10 μA @ 1000 V
Capacitance: 40pF @ 4V and 1MHz
Operating Temperature Range: -55°C to 150°C
