Same model may have multiple batches, images only for reference.

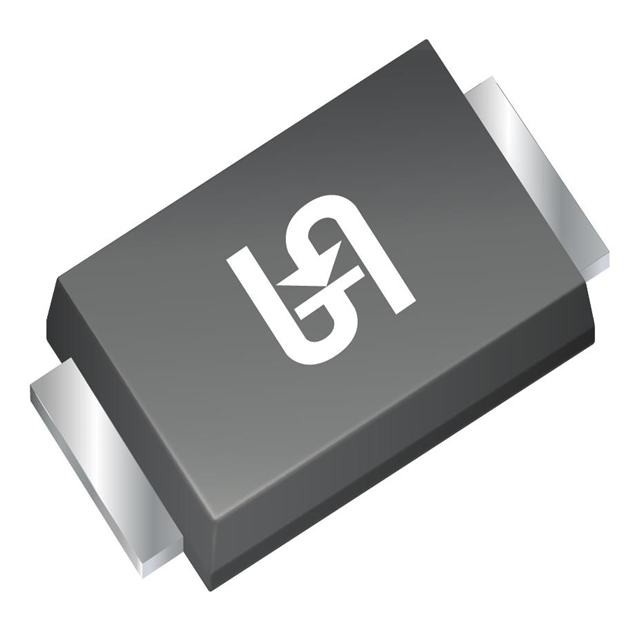

RS1MFS MWG Real Image
Same model may have multiple batches, images only for reference.

RS1MFS MWG

Part No RS1MFS MWG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE / Diode Standard 1000 V 1A Surface Mount SOD-128
Datasheet
RS1MFS MWG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Taiwan Semiconductor Corporation
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 500 ns
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Capacitance @ Vr, F 7pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case SOD-128
Supplier Device Package SOD-128
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number RS1M
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names RS1MFSMWGDKR,RS1MFSMWGTR,RS1MFSMWGCT
Standard Package 3,500
Win Source Part Number 1190931-RS1MFS MWG
Ultra Librarian 3D Model Ultra Librarian RS1MFS MWG CAD Model

Description

The RS1MFS MWG rectifier diode is a high-quality product from Taiwan Semiconductor Corporation.

  • Manufacturer: Taiwan Semiconductor Corporation
  • Maximum Reverse Voltage: 1000V
  • Average Rectified Current: 1A
  • Forward Voltage: 1.3V @ 1A
  • Reverse Recovery Time (trr): 500ns
  • Capacitance: 7pF @ 4V, 1MHz
  • Current Reverse Leakage @ Vr: 5µA @ 1000V
  • Package: Tape & Reel
  • Mounting: SMD (SMT)
