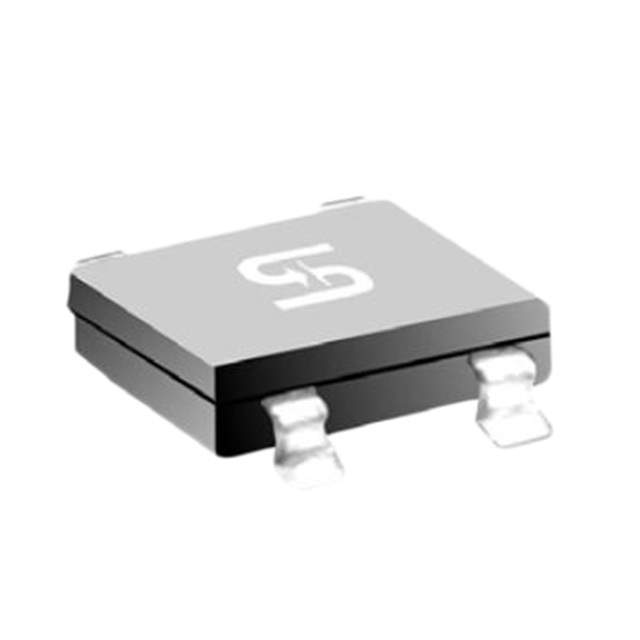

RABS15M REG Real Image
Same model may have multiple batches, images only for reference.

RABS15M REG

Part No RABS15M REG
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 1KV 1.5A ABS-L
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Taiwan Semiconductor Corporation
Packaging Reel
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1kV
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Maximum) at If 1V at 1.5A
Current - Reverse Leakage at Vr 1μA at 1000V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package 4-SMD, Gull Wing
Supplier Device Package ABS-L
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809018-RABS15M REG
Ultra Librarian 3D Model Ultra Librarian RABS15M REG CAD Model

Description

The 809018-RABS15M REG is a standard technology single-phase diode type from Taiwan Semiconductor Corporation.

  • Average Rectified Current (Io): 1.5A
  • Peak Reverse Voltage (Maximum): 1kV
  • Device Package: 4-SMD, gull wing
  • Mounting Type: SMD
  • Operating Temperature Range: -55 degrees Celsius to 150 degrees Celsius
  • Package: Reel
  • Manufacturer Pack Quantity: 1,000
  • HTSUS: 8536.41.0050
