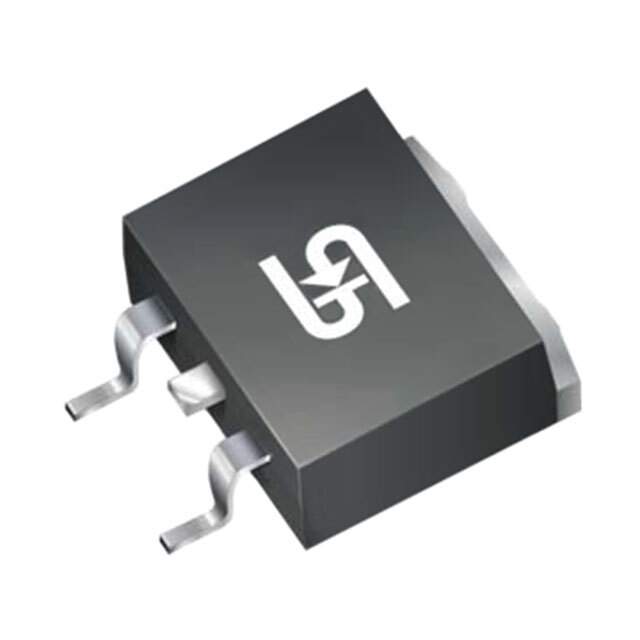

The MBRS6040CTHMNG is a Schottky Barrier Rectifier manufactured by Taiwan Semiconductor. It is designed for high-efficiency rectification in power supplies, inverters, and freewheeling diode applications. This device features low forward voltage drop, high surge current capability, and fast switching speeds, resulting in improved system efficiency and reliability.

Applications:

• Switch Mode Power Supplies (SMPS): Used as rectifier diodes in power supplies for computers, servers, and other electronic devices.
• DC-DC Converters: Provides efficient rectification in DC-DC voltage conversion.
• Solar Power Systems: Used in solar inverters and charge controllers.
• Freewheeling Diodes: Protects inductive loads from voltage spikes during switching.
• Reverse Polarity Protection: Prevents damage from accidental reverse polarity connections.

Features:

• Low Forward Voltage Drop: Minimizes power losses and improves efficiency.
• High Surge Current Capability: Withstands high current surges without degradation.
• Fast Switching Speed: Reduces switching losses and improves overall system performance.
• High Junction Temperature Capability: Allows operation in high-temperature environments.
• Lead-Free and RoHS Compliant: Meets environmental regulations.

Benefits:

• Improved Efficiency: Low forward voltage drop minimizes power dissipation, leading to higher efficiency and reduced heat generation.
• Enhanced Reliability: High surge current capability provides robust performance and protection against current surges.
• Simplified Design: Fast switching speed simplifies design and reduces the need for external components.
• Reduced System Cost: High efficiency reduces the need for bulky heat sinks and other cooling components, lowering overall system cost.
• Environmentally Friendly: Lead-free and RoHS compliant, reducing the impact on the environment.

Additional Details:

The MBRS6040CTHMNG has a repetitive peak reverse voltage (Vrrm) of 40V and a forward current (If) rating of 6.0A. It is available in a TO-252 package (DPAK). The device is designed for surface mount soldering. Specific datasheets should be consulted for detailed specifications, including thermal resistance, reverse leakage current, and operating temperature range.
