Same model may have multiple batches, images only for reference.

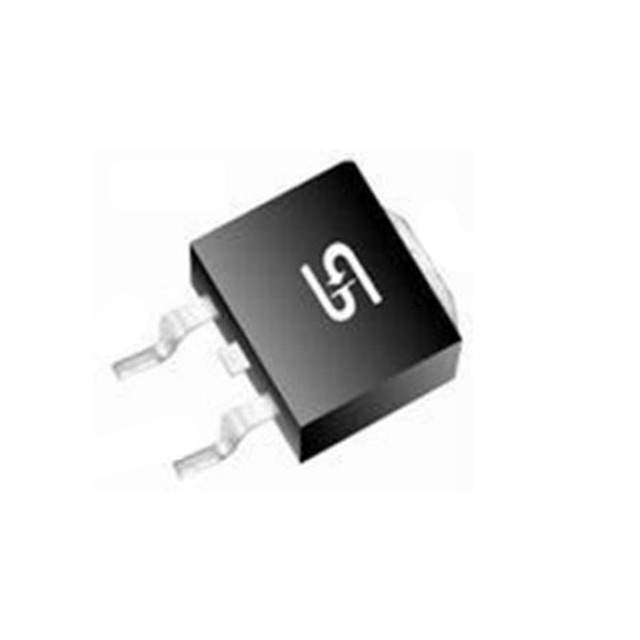

MBRS20H100CT MNG Real Image
Same model may have multiple batches, images only for reference.

MBRS20H100CT MNG

Part No MBRS20H100CT MNG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE, SCHOTTKY, STANDARD, 20A,
Datasheet
MBRS20H100CT MNG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Taiwan Semiconductor
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Max) @ If 950mV @ 20A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 5μA @ 100V
Mounting SMD (SMT)
Case / Package TO-263AB (D2PAK)
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 1072688-MBRS20H100CT MNG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MBRS20H100CT MNG CAD Model

Description

The Taiwan Semiconductor MBRS20H100CT MNG Schottky diode is an SMD (SMT) mounting type with a voltage - DC reverse (Vr) (Max) of 100V and a current - average rectified (Io) of 20A.

  • Voltage - DC Reverse (Vr) (Max): 100V
  • Current - Average Rectified (Io): 20A
  • Voltage - Forward (Vf) (Max) @ If: 950mV @ 20A
  • Current - Reverse Leakage @ Vr: 5μA @ 100V
  • Operating Temperature - Junction: -55°C to 175°C
  • Speed (Frequency): 200mA (Io)
  • Case / Package: TO-263AB (D2PAK)
  • Popularity: medium
  • Supply and Demand Status: balance
