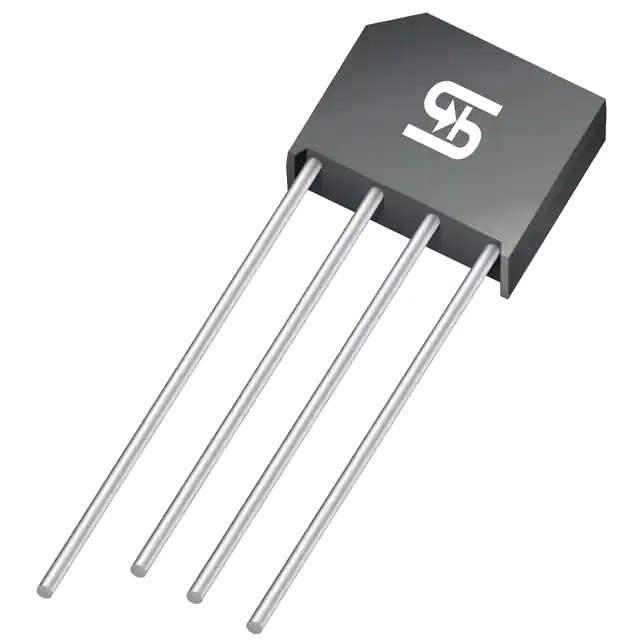

Same model may have multiple batches, images only for reference.

KBL405G

Name: KBL405G
Brand: Taiwan Semiconductor
SKU: 609968
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	KBL405G
Manufacturer	Taiwan Semiconductor
Catalog	Bridge Rectifiers
Description	BRIDGE RECT 1PHASE 600V 4A KBL
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr	Taiwan Semiconductor
Package	Tray
Product Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	600 V
Current - Average Rectified (Io)	4 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 4 A
Current - Reverse Leakage @ Vr	10 µA @ 600 V
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	4-SIP, KBL
Supplier Device Package	KBL
Base Product Number	KBL405
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	609968-KBL405G
Ultra Librarian 3D Model	Ultra Librarian KBL405G CAD Model

Description

The KBL405G is a bridge rectifier diode designed for single-phase applications.

Maximum Forward Voltage: 1.1V @ 4A
Maximum Peak Reverse Voltage: 600V
Reverse Leakage Current: 10μA @ 600V
Mounting Type: Through-Hole
Package: 4-SIP, KBL
Operating Temperature: -55°C to 150°C
Manufacturer: Taiwan Semiconductor
