The HT16G R0G is a standard rectifier diode manufactured by Taiwan Semiconductor. Rectifier diodes are semiconductor devices used to convert alternating current (AC) to direct current (DC). The HT16G R0G is designed for general-purpose rectification in a wide range of electronic applications. It is characterized by its ability to handle moderate current and voltage levels, making it suitable for power supplies, adapters, and various signal processing circuits.

Applications

• Power supplies
• Adapters
• Battery chargers
• Voltage doublers
• Blocking diodes
• Signal processing circuits

Features

• Forward voltage drop: approximately 0.9V to 1.1V (depending on current)
• Maximum forward current: typically 1A to 2A
• Maximum reverse voltage: typically 600V to 1000V
• Operating temperature range: -65°C to +150°C
• Package: DO-41 or similar axial-lead package
• Low reverse leakage current

Benefits

• Efficient AC-to-DC conversion in power supplies and adapters.
• Protection against reverse voltage in various circuits.
• Wide operating temperature range ensures reliable operation in different environments.
• Low reverse leakage current minimizes power loss.
• Cost-effective solution for general-purpose rectification.

Additional Details

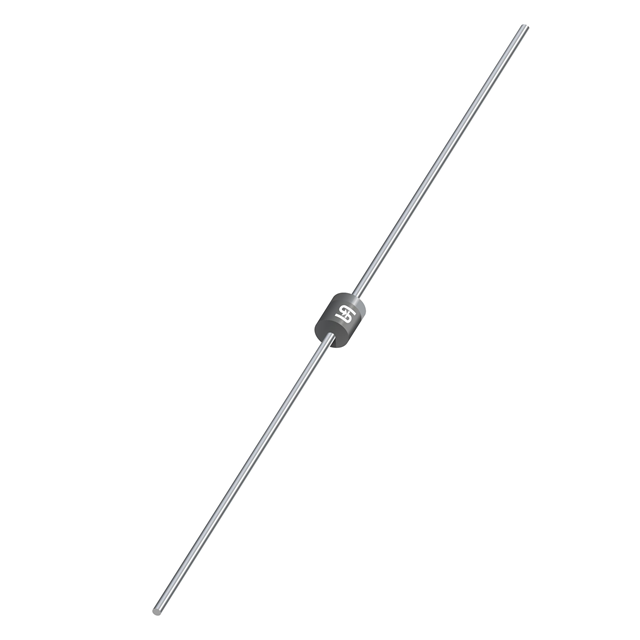

The HT16G R0G rectifier diode is available in a DO-41 (or similar axial-lead) package. It is designed to handle moderate current and voltage levels, making it suitable for general-purpose rectification applications. The diode features a low reverse leakage current, minimizing power loss and improving efficiency. Its wide operating temperature range ensures reliable performance in various environmental conditions. The HT16G R0G provides a cost-effective solution for converting AC to DC in power supplies, adapters, and other electronic circuits. The specific voltage and current ratings will depend on the exact datasheet available from Taiwan Semiconductor, so referencing that document will give precise performance characteristics.
