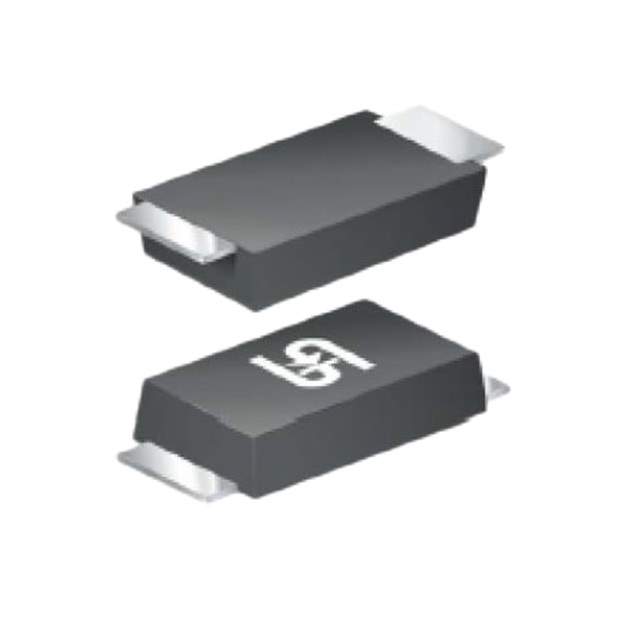

Same model may have multiple batches, images only for reference.

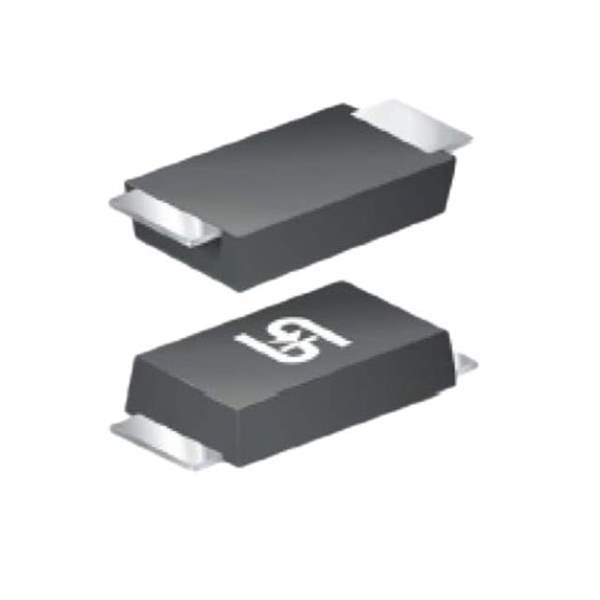

HS1KLW RVG Real Image
Same model may have multiple batches, images only for reference.

HS1KLW RVG

Part No HS1KLW RVG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE, HIGH EFFICIENT, 1A, 800V,
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Taiwan Semiconductor
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 800V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.7V @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 75ns
Current - Reverse Leakage @ Vr 1μA @ 800V
Capacitance @ Vr, F 7pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package SOD123W
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 1043954-HS1KLW RVG
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian HS1KLW RVG CAD Model

Description

The Taiwan Semiconductor HS1KLW RVG is a standard diode with a voltage rating of 800V.

  • Manufacturer: Taiwan Semiconductor
  • Voltage Rating: 800V
  • Current Rating: 1A
  • Forward Voltage: 1.7V @ 1A
  • Reverse Recovery Time: 75ns
  • Capacitance: 7pF @ 4V, 1MHz
  • Mounting Technology: SMD (SMT)
  • Case/Package: SOD123W
  • Recovery Speed: 200mA (Io)
  • Temperature Range: -55°C to 175°C
  • Quantity per Package: 3k pcs
