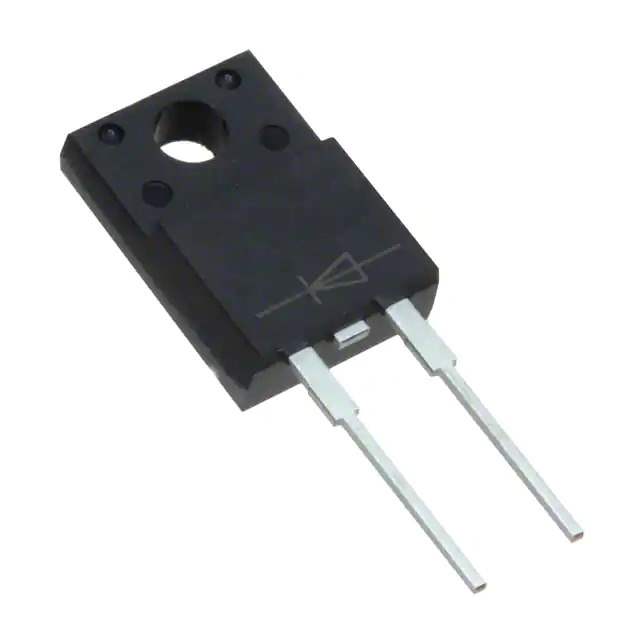

HERAF808G Real Image
Same model may have multiple batches, images only for reference.

HERAF808G

Part No HERAF808G
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1KV 8A ITO220AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 80 ns
Current - Reverse Leakage @ Vr 10 µA @ 1000 V
Capacitance @ Vr, F 60pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case TO-220-2 Full Pack
Supplier Device Package ITO-220AC
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number HERAF808
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 597370-HERAF808G
Ultra Librarian 3D Model Ultra Librarian HERAF808G CAD Model

Description

The 597370-HERAF808G is a single diode rectifier designed for fast recovery applications.

  • Diode Type: Single Diode Rectifier
  • Application: Fast Recovery
  • Maximum Reverse Voltage: 1000V
  • Average Rectified Current: 8A
  • Forward Voltage: 1.7V @ 8A
  • Reverse Recovery Time: 80ns
  • Capacitance: 60pF @ 4V and 1MHz
  • Package: TO-220-2 Full Pack
  • Mounting Type: Through-Hole
  • Manufacturer: Taiwan Semiconductor
  • Status: Active
  • Ideal for: Applications requiring fast recovery and high voltage handling
