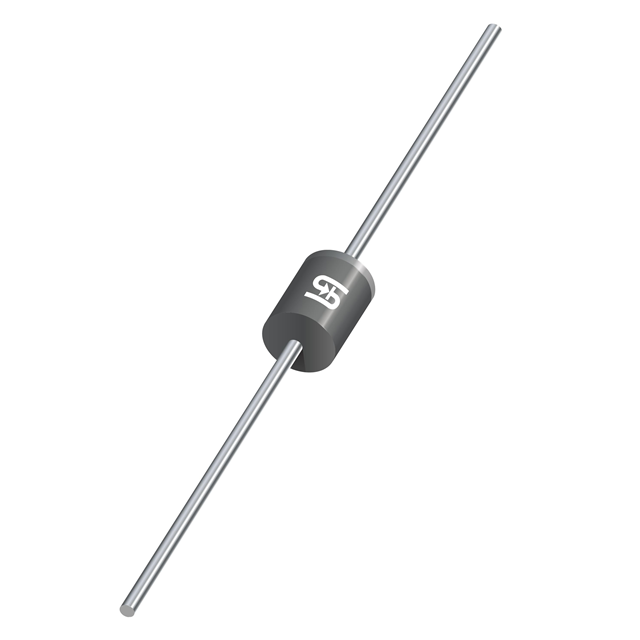

The HER604G R0G is a High-Efficiency Rectifier diode manufactured by Taiwan Semiconductor. This diode is designed for applications requiring efficient rectification and high surge current handling. It is commonly used in circuits to rectify AC signals, provide reverse polarity protection, or clamp voltage spikes.

Applications

• Power Supplies: Used as rectifier diodes in power supply circuits.
• Inverters: Employed in inverter circuits for converting DC to AC.
• Freewheeling diodes: Protecting inductive loads by providing a path for current flow when the switch is turned off.
• Reverse polarity protection: Preventing damage from incorrect polarity connections.
• Voltage clamping: Limiting voltage spikes to protect sensitive components.

Features

• High Efficiency: Provides efficient rectification with low forward voltage drop.
• High Surge Current Capability: Can withstand high surge currents.
• Low Reverse Leakage Current: Minimizes reverse current flow.
• Glass Passivated Junction: Enhances reliability and stability.
• Pb-Free Package: Environmentally friendly and RoHS compliant.
• R-6 Package: Standard package for easy mounting and heat dissipation.

Benefits

• Improved efficiency: Low forward voltage drop reduces power losses.
• Enhanced reliability: Glass passivated junction enhances stability.
• Versatile application: Suitable for a wide range of rectification applications.
• Easy to use: Standard R-6 package simplifies mounting and soldering.
• Reliable operation: Provides stable performance in various environments.
• Environmentally friendly: Pb-Free package meets environmental regulations.

Additional Details

The HER604G R0G features a maximum forward voltage drop of around 0.95V at 6A. The maximum reverse leakage current is typically around 5 μA. It is available in the R-6 package, which is easy to handle and solder and provides good heat dissipation. This diode is designed to be used in applications where a high-efficiency rectifier is needed. The diode is designed to handle a repetitive peak reverse voltage of 400V. The forward current is 6.0A. The "R0G" suffix typically indicates a RoHS compliant and lead-free part. It adheres to industry standard electrostatic discharge (ESD) protection levels, providing added reliability in handling and operation.
