Same model may have multiple batches, images only for reference.

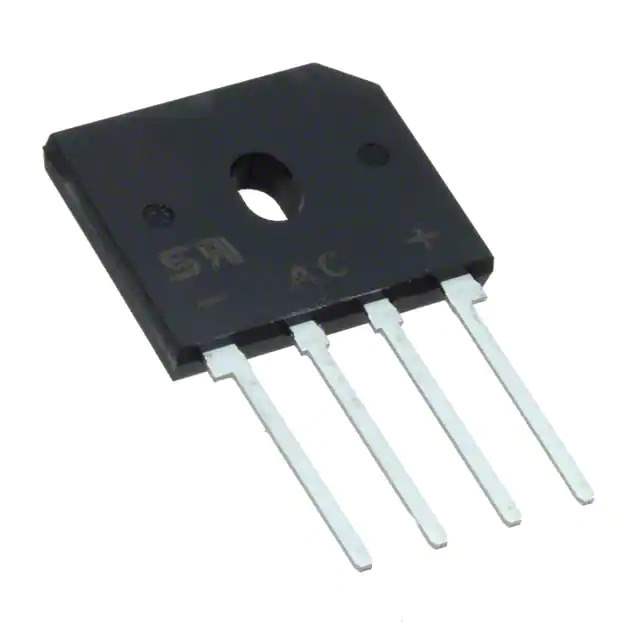

GBU1007 Real Image
Same model may have multiple batches, images only for reference.

GBU1007

Part No GBU1007
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 10A GBU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 10 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBU
Supplier Device Package GBU
Base Product Number GBU1007
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 594321-GBU1007
Ultra Librarian 3D Model Ultra Librarian GBU1007 CAD Model

Description

The 594321-GBU1007 is a bridge rectifier diode from Taiwan Semiconductor.

  • Diode Type: Single-Phase
  • Current Average Rectified (Io): 10 A
  • Forward Voltage: 1.1 V @ 1.5 A
  • Reverse Leakage Current: 5 μA @ 1000 V
  • Maximum Peak Reverse Voltage: 1 kV
  • Mounting Type: Through-Hole
  • Package: 4-SIP, GBU
  • Operating Temperature: -55°C to 150°C (TJ)
  • Status: Active
