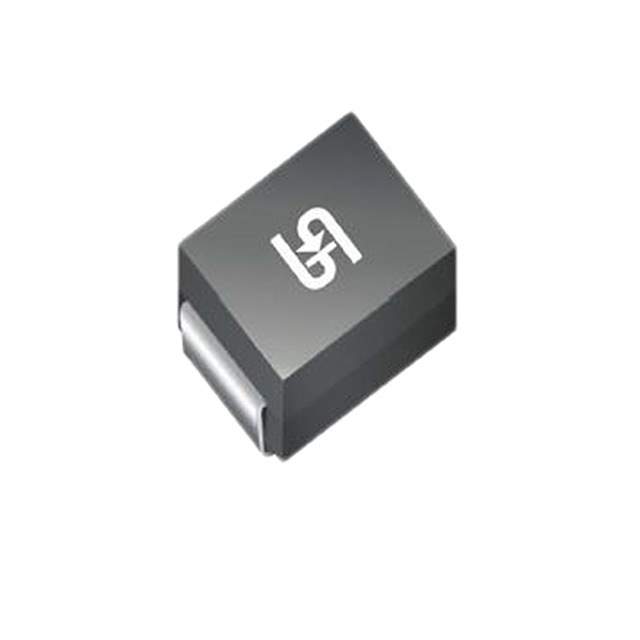

5.0SMDJ22AHM6G Real Image
Same model may have multiple batches, images only for reference.

5.0SMDJ22AHM6G

Part No 5.0SMDJ22AHM6G
Manufacturer Taiwan Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 22VWM 35.5VC DO214AB / 35.5V Clamp 141A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Taiwan Semiconductor Corporation
Series Automotive, AEC-Q101, 5.0SMDJ
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22V
Voltage - Breakdown (Min) 24.4V
Voltage - Clamping (Max) @ Ipp 35.5V
Current - Peak Pulse (10/1000µs) 141A
Power - Peak Pulse 5000W (5kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMC)
Base Product Number 5.0SMDJ22
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 5.0SMDJ22AHM6GTR,5.0SMDJ22AHM6GDKR,5.0SMDJ22AHM6GCT
Standard Package 3,000
Win Source Part Number 1038919-5.0SMDJ22AHM6G
Ultra Librarian 3D Model Ultra Librarian 5.0SMDJ22AHM6G CAD Model

Description

This is a Zener type TVS diode with a reverse standoff voltage of 22V and a breakdown voltage of 24.4V (minimum).

  • Diode Type: TVS (Zener)
  • Channel: Unidirectional
  • Mounting Type: SMD (SMT)
  • Series: 5.0SMDJ
  • Power Peak Pulse: 5000W (5kW)
  • Reverse Standoff Voltage: 22V
  • Breakdown Voltage (Min): 24.4V
  • Voltage Clamping @ Ipp: 35.5V
  • Current Peak Pulse (10/1000µs): 141A
  • Package/Case: DO-214AB, SMC
  • Supplier Device Package: DO-214AB (SMC)
  • Operating Temperature: -55°C to 175°C (TJ)
  • Application: Automotive
  • Packaging: Tape and Reel
  • Standard Package: 3,000
