Same model may have multiple batches, images only for reference.

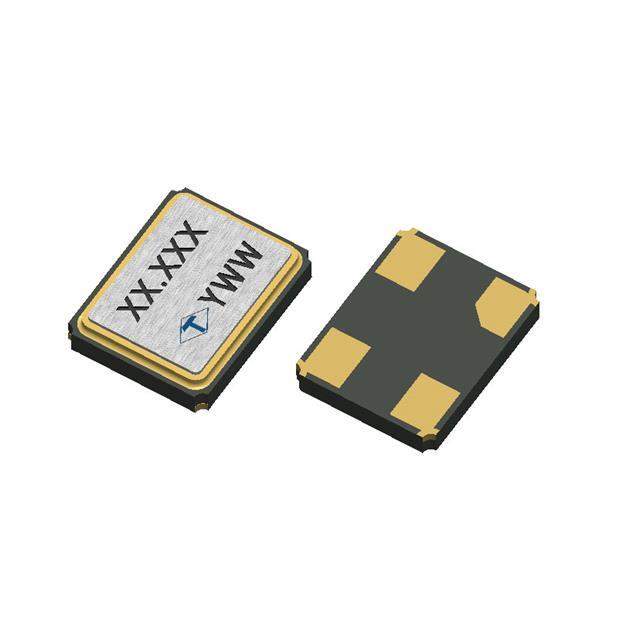

XXHEELNANF-24.000000 Real Image
Same model may have multiple batches, images only for reference.

XXHEELNANF-24.000000

Part No XXHEELNANF-24.000000
Manufacturer Taitien
Catalog Crystals
Description CRYSTAL 24.0000MHZ 20PF SMD / 24 MHz ±30ppm Crystal 20pF 60 Ohms 4-SMD, No Lead
Datasheet
XXHEELNANF-24.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Taitien
Series XX
Package Tape & Reel
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
California Prop 65 Warning Information
Win Source Part Number 1351746-XXHEELNANF-24.000000
Ultra Librarian 3D Model Ultra Librarian XXHEELNANF-24.000000 CAD Model

Description

The XX MHz Crystal from Taitien is a high-performance device designed for use in various applications.

  • Frequency: 24 MHz
  • ESR: 60 Ohms
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 20pF
  • Operating Temperature Range: -40°C to 85°C
  • Mounting: surface mountable
