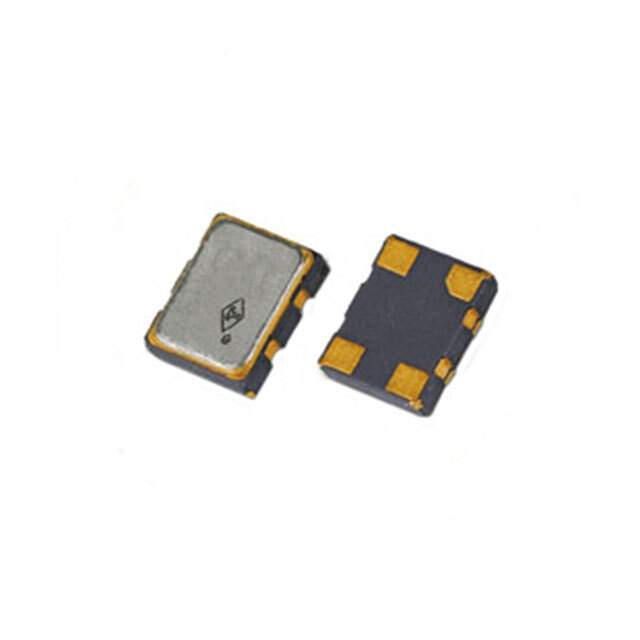

TYETBCSANF-50.000000 Real Image
Same model may have multiple batches, images only for reference.

TYETBCSANF-50.000000

Part No TYETBCSANF-50.000000
Manufacturer Taitien
Catalog Oscillators
Description XTAL OSC TCXO 50.0000MHZ SNWV / 50 MHz TCXO Clipped Sine Wave Oscillator 2.8V ~ 3.3V 4-SMD, No Lead
Datasheet
TYETBCSANF-50.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Taitien
Series TY
Package Tape & Reel
Base Resonator Crystal
Type TCXO
Frequency 50 MHz
Output Clipped Sine Wave
Voltage - Supply 2.8V ~ 3.3V
Frequency Stability ±1ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 2.5mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
California Prop 65 Warning Information
Win Source Part Number 1339168-TYETBCSANF-50.000000
Ultra Librarian 3D Model Ultra Librarian TYETBCSANF-50.000000 CAD Model

Description

The TY series TCXO oscillator from Taitien is a high precision oscillator from Taitien with a frequency of 50 MHz and a frequency stability of ±1ppm.

  • Frequency: 50 MHz
  • Output: Clipped Sine Wave
  • Frequency Stability: ±1ppm
  • Standard Package: 500
  • Current Supply (Max): 2.5mA
  • Voltage Supply: 2.8V to 3.3V
  • Temperature Range: -20°C to 70°C
  • Mounting Type: Surface Mount
  • Package: 4-SMD with no lead
  • Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.031" (0.80mm)
