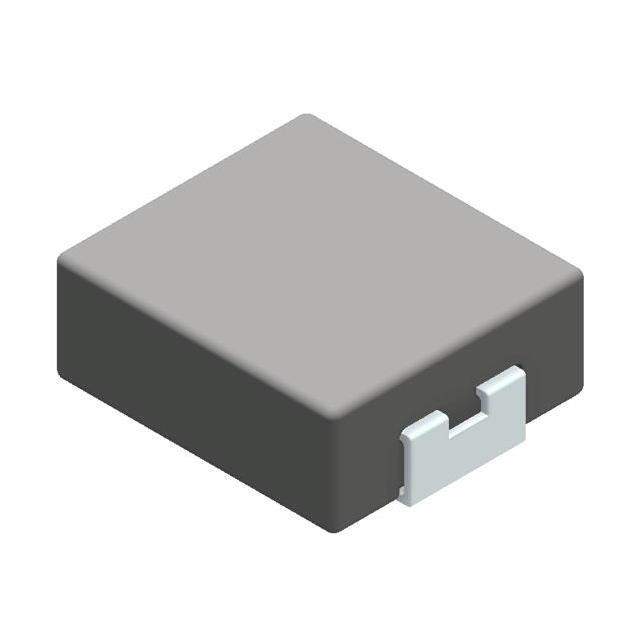

Same model may have multiple batches, images only for reference.

TMPC 0412HP-1R0MG-Z02

Name: TMPC 0412HP-1R0MG-Z02
Brand: TAI-TECH Advanced Electronics
SKU: 1383671
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TMPC 0412HP-1R0MG-Z02
Manufacturer	TAI-TECH Advanced Electronics
Catalog	Fixed Inductors
Description	1.0 UH SHIELDED MOLDED INDUCTOR / 1 µH Unshielded Inductor 4 A 47mOhm Max Nonstandard
Datasheet	TMPC 0412HP-1R0MG-Z02 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	TAI-TECH Advanced Electronics
Series	TMPC0412HP
Package	Tape & Reel
Type	-
Material - Core	Carbonyl Powder
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	4 A
Current - Saturation (Isat)	6A
Shielding	Unshielded
DC Resistance (DCR)	47mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max)	0.047" (1.20mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
Standard Package	4,000 pcs
Win Source Part Number	1383671-TMPC 0412HP-1R0MG-Z02
Ultra Librarian 3D Model	Ultra Librarian TMPC 0412HP-1R0MG-Z02 CAD Model

Alternative Products

Description

The TMPC0412HP-1R0MG-Z02 is a fixed inductor from TAI-TECH Advanced Electronics.

Series: TMPC0412HP
Size: 0.175" L x 0.160" W (4.45mm x 4.06mm)
Inductance: 1 μH
Tolerance: ±20%
Shielded: Unshielded
Mounting Type: Surface Mountable
DC Resistance (DCR): 47mOhm Max
Current Rating: 4A
Operating Temperature: -40°C to 125°C
Core Material: Carbonyl Powder
