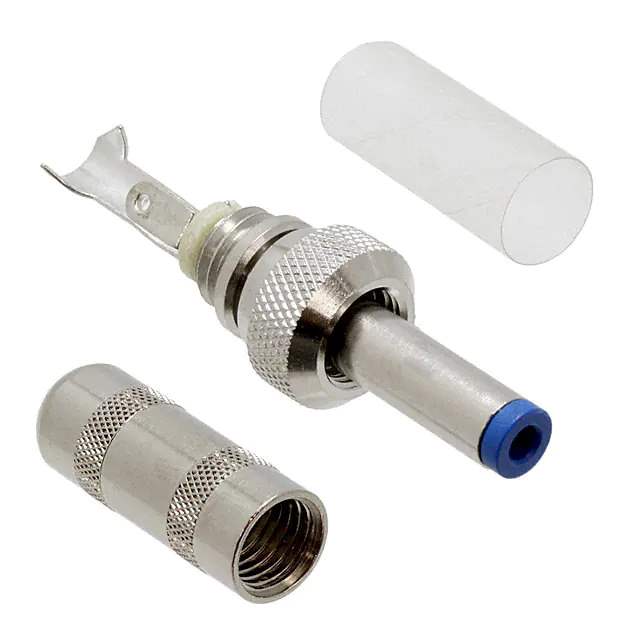

S10K Real Image
Same model may have multiple batches, images only for reference.

S10K

Part No S10K
Manufacturer Switchcraft Inc.
Catalog Barrel - Power Connectors
Description CONN PWR PLUG 2X5.5MM SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Power Connectors
Mfr Switchcraft Inc.
Series S10
Package Bulk
Product Status Active
Connector Type Plug
Gender Female
Industry Recognized Mating Diameter 2.00mm ID (0.079"), 5.50mm OD (0.217")
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Free Hanging (In-Line)
Termination Solder
Shielding Unshielded
Features Thread Lock
Insulation Color Blue
Voltage - Rated 24VDC
Current Rating (Amps) 11 A
Temperature Range - Operating -40°C ~ 105°C
Contact Material - Plating Silver
Body Material Metal
Includes 2 pcs - 1 Connector, 1 Handle
Housing Material Copper Alloy
Contact Material Copper Alloy
Body Color Silver
Base Product Number S10
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 662189-S10K
Ultra Librarian 3D Model Ultra Librarian S10K CAD Model

Description

The 662189-S10K is a power connector in the form of a plug.

  • Termination: solder
  • Package: bulk
  • Material: copper alloy
  • Gender: female
  • Conductors: 2
  • Contacts: 3
  • Switch: no internal switch
  • Contact Plating: silver
  • Mating Diameter: 2.00mm ID (0.079") and 5.50mm OD (0.217")
  • Shielding: unshielded
  • Housing Material: copper alloy
  • Mounting: free hanging (in-line)
  • Current Rating: 11 Amps
  • Voltage Rating: 24VDC
  • Operating Temperature: -40°C to 105°C
  • Color: silver
  • ECCN: EAR99
  • Manufacturer: Switchcraft Inc.
  • Series: S10
