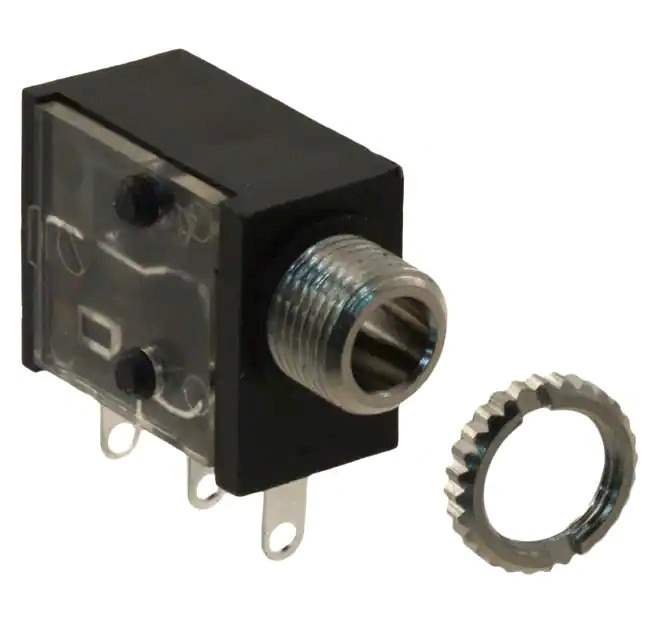

35RAPC2AV Real Image
Same model may have multiple batches, images only for reference.

35RAPC2AV

Part No 35RAPC2AV
Manufacturer Switchcraft Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK MONO 3.5MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Audio Connectors
Mfr Switchcraft Inc.
Series 35
Package Bulk
Product Status Active
Connector Type Phone Jack
Gender Female
Signal Lines Mono
Industry Recognized Mating Diameter 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter 0.142" (3.60mm)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch
Mounting Type Through Hole, Right Angle
Termination Solder Eyelet(s)
Shielding Unshielded
Features Thread Lock
Contact Material - Plating Silver
Body Material Brass
Body Color Silver, Black
Housing Material Polybutylene Terephthalate (PBT)
Contact Material Copper Alloy
Base Product Number 35RAPC
Standard Package 560 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 845282-35RAPC2AV
Ultra Librarian 3D Model Ultra Librarian 35RAPC2AV CAD Model

Description

The 845282-35RAPC2AV is a female phone jack connector designed for audio applications.

  • Number of Conductors: 2
  • Number of Contacts: 3
  • Termination: Solder Eyelet(s)
  • Manufacturer: Switchcraft Inc.
  • Contact Material: Copper Alloy
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Packaging: 560 Pieces
