Same model may have multiple batches, images only for reference.

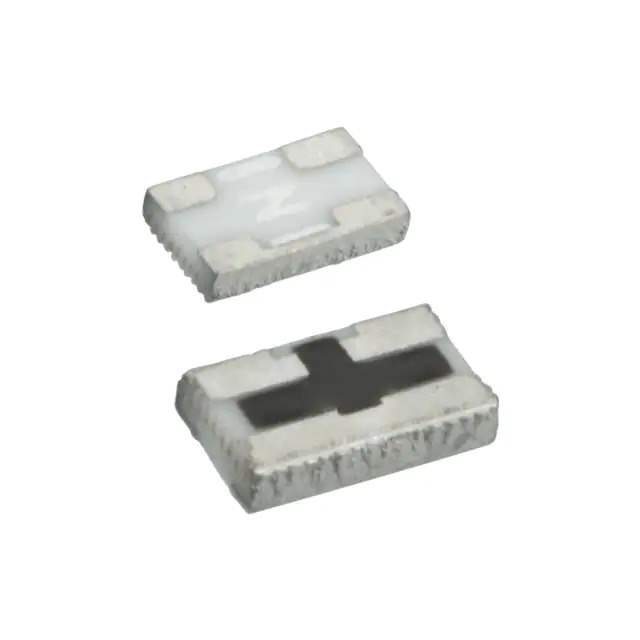

PXV1220S-7DBN1-T02 Real Image
Same model may have multiple batches, images only for reference.

PXV1220S-7DBN1-T02

Part No PXV1220S-7DBN1-T02
Manufacturer Susumu
Catalog Attenuators
Description RF ATTENUATOR 7DB 50OHM 0805 / RF Attenuators 7dB 0 Hz ~ 3 GHz 50 Ohms 63mW 0805 (2012 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Susumu
Series PxV
Package Tape & Reel
Product Status Active
Attenuation Value 7dB
Frequency Range 0 Hz ~ 3 GHz
Power (Watts) 63mW
Impedance 50 Ohms
Package / Case 0805 (2012 Metric)
Standard Package 200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 890519-PXV1220S-7DBN1-T02
Ultra Librarian 3D Model Ultra Librarian PXV1220S-7DBN1-T02 CAD Model

Description

The PXV1220S-7DBN1-T02 is an attenuator from Susumu. It is part of the PxV series and has an impedance of 50 Ohms.

  • Series: PxV
  • Impedance: 50 Ohms
  • Power: 63mW
  • Frequency Range: 0 Hz to 3 GHz
  • Attenuation: 7dB
  • Package: 0805 (2012 Metric)
