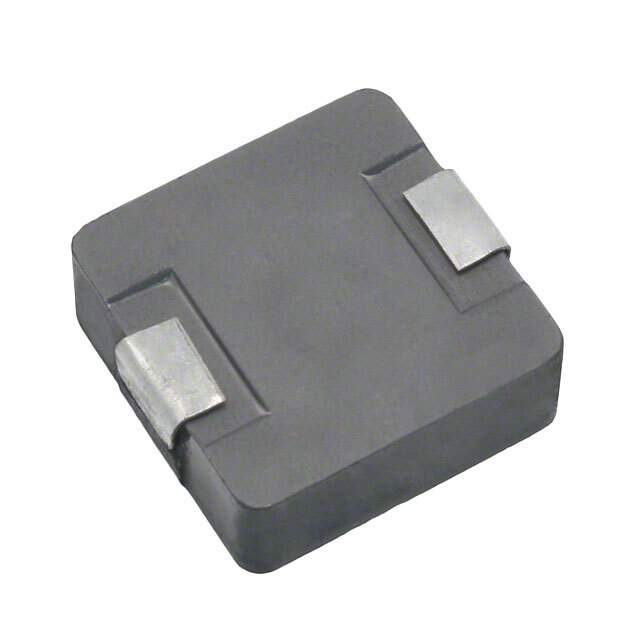

PCMC133E-R56MF Real Image
Same model may have multiple batches, images only for reference.

PCMC133E-R56MF

Part No PCMC133E-R56MF
Manufacturer Susumu
Catalog Fixed Inductors
Description FIXED IND 560NH 29A 2.2 MOHM SMD / Power Choke Wirewound 0.56uH 20% 29A 0.0022Ohm DCR T/R
Datasheet
PCMC133E-R56MF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Susumu
Series PCMC
Packaging Reel package
Part Status Obsolete(EOL)
Inductance 560nH
Tolerance ±20%
Current Rating 29A
Current - Saturation 51A
Shielding Unshielded
DC Resistance (DCR) 2.2 mOhm Max
Mounting SMD
Package Nonstandard
Dimension 0.530" L x 0.496" W (13.45mm x 12.60mm)
Height - Seated (Maximum) 0.130" (3.30mm)
Win Source Part Number 791596-PCMC133E-R56MF
Popularity Medium
Supply and Demand Status Limited
Family Name PCMC
Introduction Date October 23, 2008
ECCN EAR99
Country of Origin China, Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PCMC133E-R56MF CAD Model

Description

The Susumu PCMC133E-R56MF is an obsolete (EOL) electronic component from Susumu.

  • Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
