Same model may have multiple batches, images only for reference.

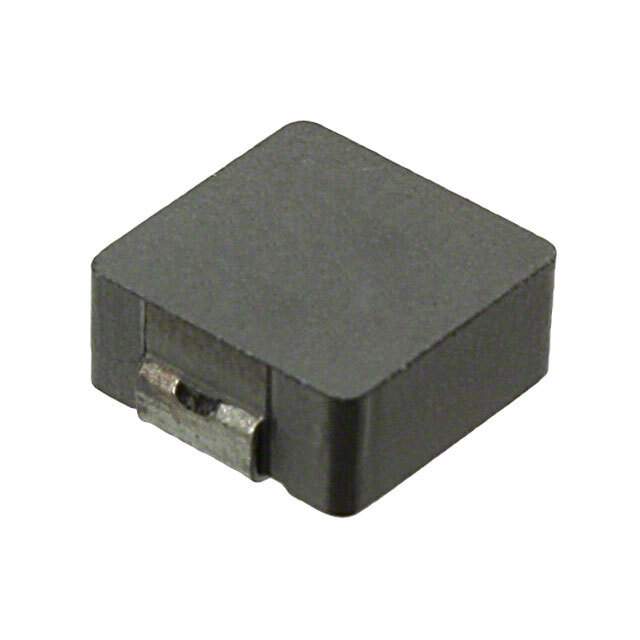

PCMB063T-1R5MS Real Image
Same model may have multiple batches, images only for reference.

PCMB063T-1R5MS

Part No PCMB063T-1R5MS
Manufacturer Susumu
Catalog Fixed Inductors
Description FIXED IND 1.5UH 9A 15 MOHM SMD / 1.5 µH Unshielded Inductor 9 A 15mOhm Max Nonstandard
Datasheet
PCMB063T-1R5MS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Susumu
Series PCMB
Package Tape & Reel
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 9 A
Current - Saturation (Isat) 18A
Shielding Unshielded
DC Resistance (DCR) 15mOhm Max
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.274" L x 0.260" W (6.95mm x 6.60mm)
Height - Seated (Max) 0.110" (2.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 408-1522-1,PCMB063T1R5MS,408-1522-2,408-1522-6
Standard Package 1,000
Win Source Part Number 1155915-PCMB063T-1R5MS
Ultra Librarian 3D Model Ultra Librarian PCMB063T-1R5MS CAD Model

Description

The Susumu PCMB063T-1R5MS is an unshielded fixed inductor with an inductance of 1.5 µH, a tolerance of ±20%, and a DC resistance of 15 mOhm max.

  • Shielding: Unshielded
  • Inductance: 1.5 µH
  • Tolerance: ±20%
  • DC Resistance: 15 mOhm max.
  • Current Rating: 9 A
  • Saturation Current: 18 A
  • Package/Case: Nonstandard
  • Mounting Type: Surface Mount (SMT)
  • Packaging: Tape and Reel
  • Standard Package: 1000
  • Manufacturer: Susumu
