Same model may have multiple batches, images only for reference.

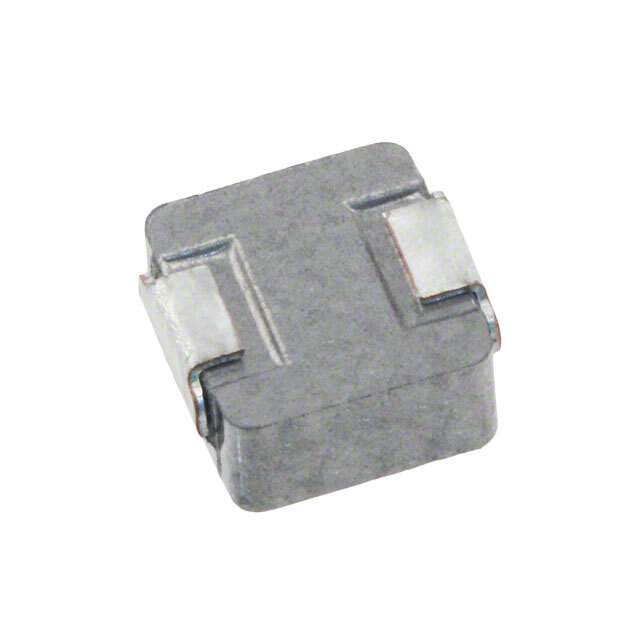

PCMB104T-2R2MS Real Image
Same model may have multiple batches, images only for reference.

PCMB104T-2R2MS

Part No PCMB104T-2R2MS
Manufacturer Susumu
Catalog Fixed Inductors
Description FIXED IND 2.2UH 12A 7 MOHM SMD / Power Choke Wirewound 2.2uH 20% 12A 0.007Ohm DCR 4040 T/R
Datasheet
PCMB104T-2R2MS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Susumu
Series PCMB
Packaging Reel package
Inductance 2.2μH
Tolerance ±20%
Current Rating 12A
Current - Saturation 18A
Shielding Unshielded
DC Resistance (DCR) 7 mOhm Max
Mounting SMD
Package Nonstandard
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Maximum) 0.150" (3.80mm)
Win Source Part Number 791591-PCMB104T-2R2MS
Popularity Medium
Supply and Demand Status Balance
Family Name PCMB
Introduction Date October 23, 2008
ECCN EAR99
Country of Origin China, Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PCMB104T-2R2MS CAD Model

Description

The Susumu PCMB104T-2R2MS is a high-performance inductor with an inductance of 2.2μH and a current rating of 12A. This SMD inductor comes in a nonstandard package and is unshielded.

  • Inductance: 2.2μH
  • Current Rating: 12A
  • Mounting: SMD
  • Shielding: unshielded
  • DC Resistance (DCR): 7 mOhm Max
  • Saturation Current: 18A
  • Tolerance: ±20%
  • Dimensions: 0.433" L x 0.394" W (11.00mm x 10.00mm)
  • Height seated (maximum): 0.150" (3.80mm)
  • Applications: Inductors, Coils, and Chokes
  • Manufactured In: China and Japan
  • Estimated EOL Date: 2027
