Same model may have multiple batches, images only for reference.

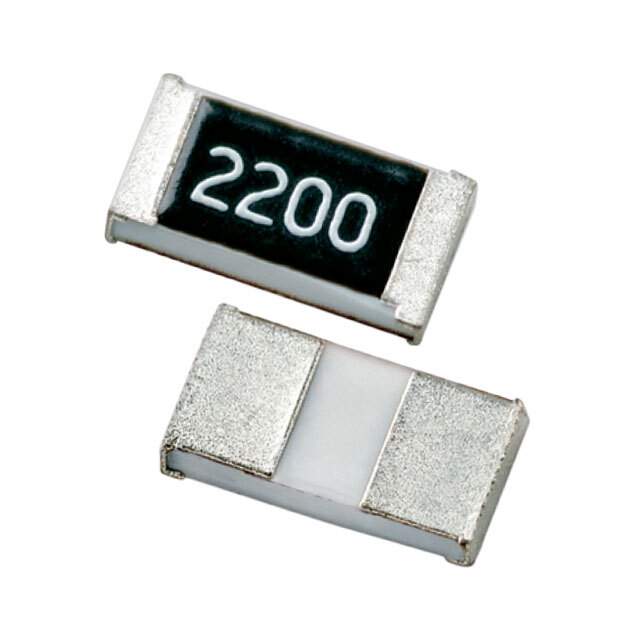

HRG3216Q-20R0-D-T5 Real Image
Same model may have multiple batches, images only for reference.

HRG3216Q-20R0-D-T5

Part No HRG3216Q-20R0-D-T5
Manufacturer Susumu
Catalog Chip Resistor - Surface Mount
Description RES SMD 20 OHM 0.5% 1W 1206 / 20 Ohms ±0.5% 1W Chip Resistor 1206 (3216 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
Datasheet
HRG3216Q-20R0-D-T5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Susumu
Packaging Reel - TR
Resistance 20 Ohms
Tolerance ±0.5%
Power (Watts) 1W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 5,000
Win Source Part Number 1326349-HRG3216Q-20R0-D-T5
Ultra Librarian 3D Model Ultra Librarian HRG3216Q-20R0-D-T5 CAD Model

Description

The Susumu HRG3216Q-20R0-D-T5 is a chip resistor with a thin film composition.

  • Manufacturer: Susumu
  • Composition: Thin Film
  • Resistance: 20 Ω
  • Power Rating: 1 W
  • Tolerance: ±0.5%
  • Temperature Coefficient: ±50 ppm/°C
  • Mounting Type: Surface Mount
  • Case/Package: 1206 (3216 Metric)
  • Packaging: Reel
  • Pieces per Reel: 5,000
  • Length: 3.20 mm
  • Width: 1.65 mm
  • Height: 0.55 mm
  • Temperature Range: -55 °C to 155 °C
  • AEC-Q200: Rated
  • Features: Anti-Sulfur, Moisture-Resistant
  • Application: Automotive
  • RoHS3: Compliant
  • REACH: Unaffected
